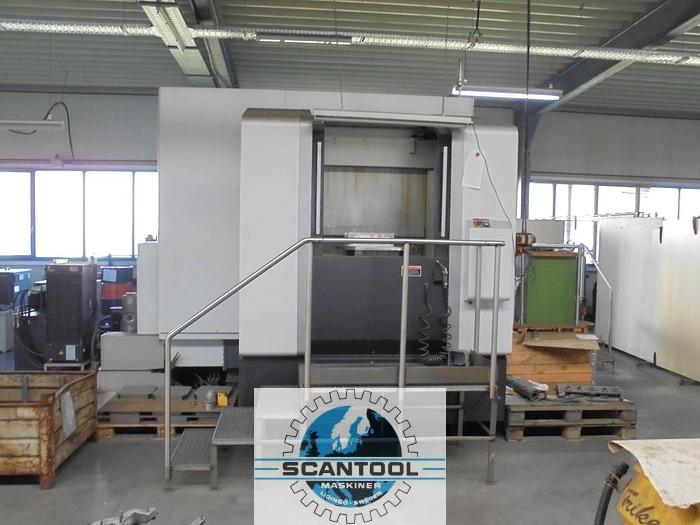

5-axes Horizontal Machining Centre

5-axes Horizontal Machining Centre

Kontakta oss för pris

ellerRing 468-765 25 20


Make                                                                                                    Mori-Seiki

Modell                                                                                                  NMH-5000/40 DCG

Year of Manufacture                                                                            2011

Control                                                                                                MSX-711-Mapps IV


No of palettes                                                                                      2 off

Palette size                                                                                         500 x 500 mm

Palette load  700 kg

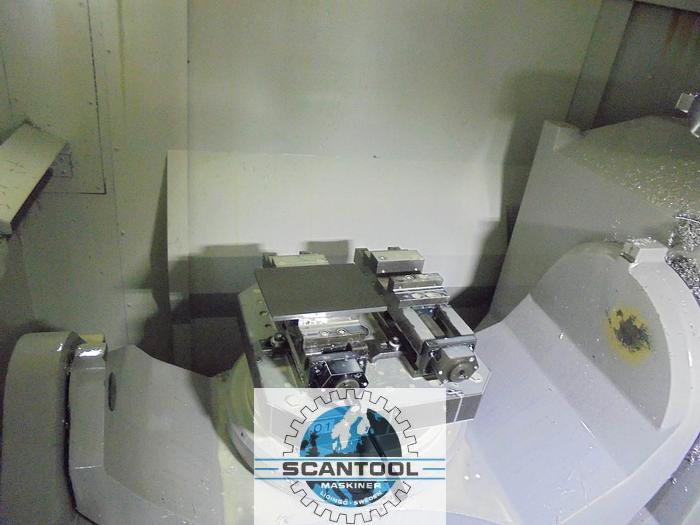

Palette index    B-axes 360° Programmable increment          0,001°

Palette tilting    A-axes + 30°/-120° ___”___                             0,001°

Traverses         X/Y/X                                                                          730/850/1100 mm

Feeds               X/Y/Z                                                                          1-50.000 mm/min

Rapid feed       X/Y/Z                                                                           50.000 mm/min

Spindle taper                                                                                       JIS 40

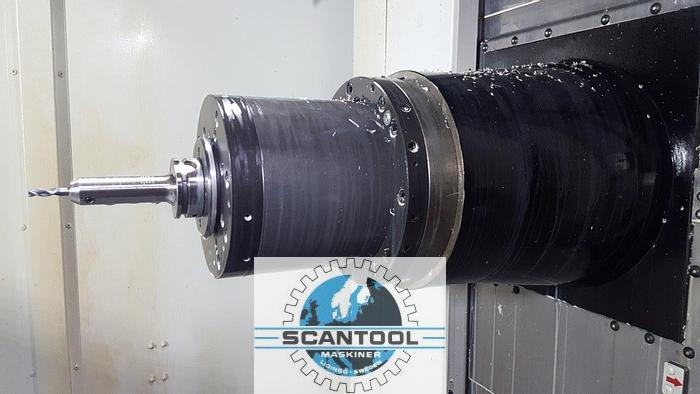

Spindle power                                                                                     18/22 kW

Spindle speed                                                                                     0 - 12.000 rpm

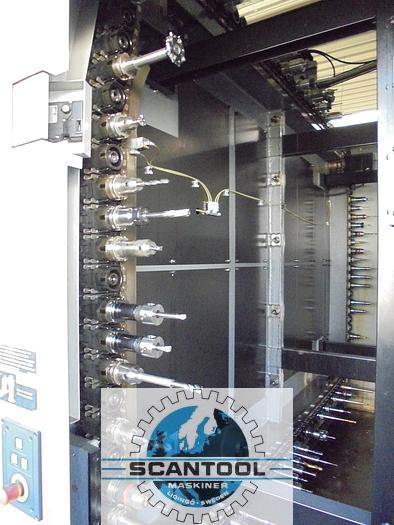

No. of tool pockets                                                                              120 off

Tool taper                                                                                            HSK 63

Tool diameter  full/empty                                                                     70/140 mm

Tool length                                                                                         480 mm

Tool weight                                                                                          12 kg

Machine weight aproximeatly                                                             21000 kg

Machine  dimensioner L x W x H                                                        5940 x 6100 x 3250 mm


MAPPS IV Control with: 19” TFT display Conversational programming and graphics display PC keyboard and dual core processor Programmable softkeys and extended display Easy programming of complex workpieces ESPIRIT CAM Software. 3-D simulation with work process follow-up Extended part program memory to 1MB or 1000 registered programmes Extended number of work coordinates (300) Fast fixed cycles to use during programming Milling of pockets and islands MAPPS tool management system Coolant shower in work area Fully enclosed housing Automatic door locking system Work area lighting Interface for high pressure coolant through the spindle High pressure coolant through the spindle Coolant gun for loading station Coolant gun for operator side Chip conveyor to the rear of the machine with lift up conveyor Tool breakage control at the tool magazine Spindle measuring probe RENISHAW Table mounted tool length measurement and tool breakage control METROL Manual pulse generator MPG (electric handwheel) Signal lamp – 3 colour Red / White / Green



TillverkareMori Seiki
ModellNMH 5000/40
