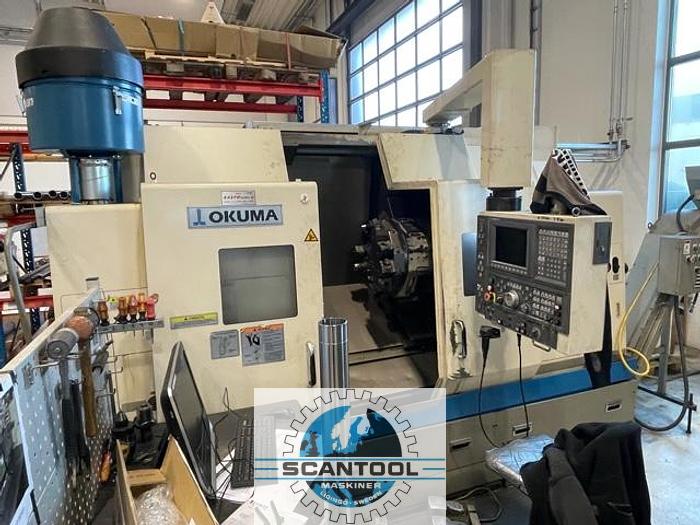

Okuma Svarv med Y-axel

Fabrikat                                                                                                                   OKUMA

Typ                                                                                                                           LB 300 MY

Tillverkningsår                                                                                                       2003

Styrsystem                                                                                                              OSP E 100L

Swing över bädd                                                                                                     530 mm

Swing över tvärslid                                                                                                 420 mm

Svarvdiameter max                                                                                                 340 mm

Svarvlängd                                                                                                              1000 mm

Rörelser X                                                                                                               280 mm

              Y                                                                                                               120 (+70~-50) mm

              Z                                                                                                               1045 mm

              C                                                                                                               0,001°

Spindel varvtal                                                                                                         45 - 3.800 v/min

Spindel effekt                                                                                                          15/11 kW

Spindelborrning                                                                                                       80 mm

Spindelnos                                                                                                              A2-8

Spindellager diam.                                                                                                  120 mm

Snabbmatning X/Y/Z                                                                                              20/10/25 m/min

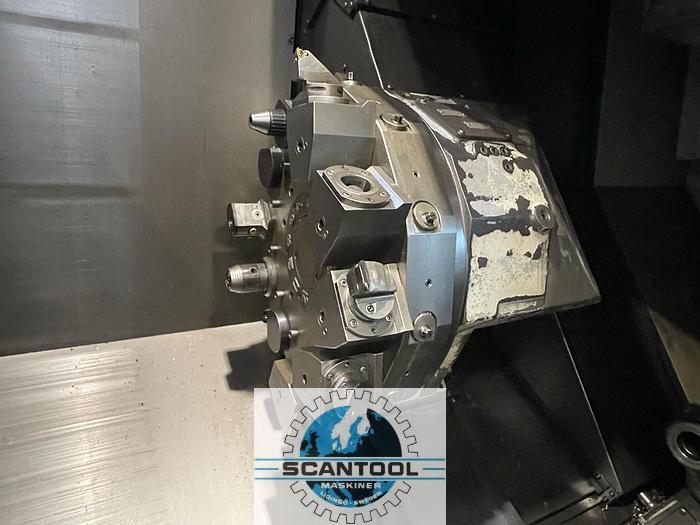

Antal Verktyg i revolvern                                                                                        12 st.

Spindelvarvtal drivna verktyg                                                                                4500 v/min

Effekt drivna verktyg                                                                                               5,5 kW

Chuck diameter Kitagawa B-212                                                                            210 mm

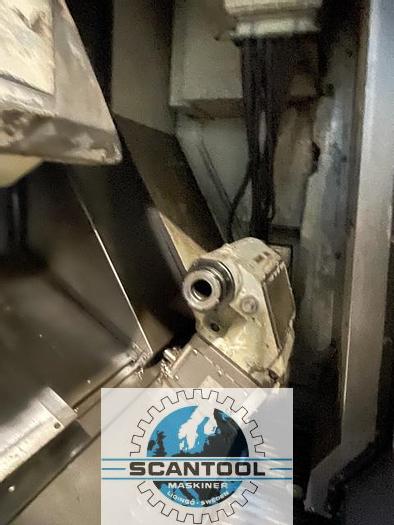

Dubb dockans pinol rörelse                                                                                     90 mm

Maskinens dimensioner             LxBxH                                                                4,2x2,0x2,2 m

Maskinens vikt                                                                                                        7.900 kg

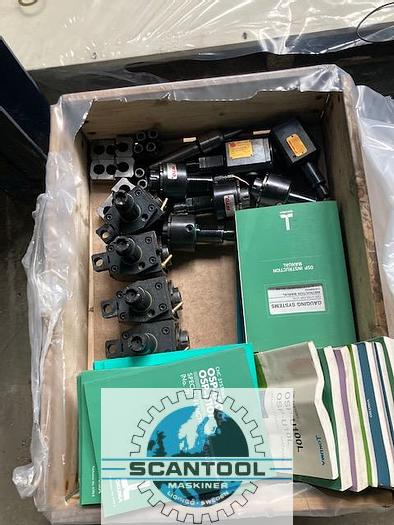

Utrustning:         Spåntransportör, verktygs förinställoning, lite drivna verktyg.
