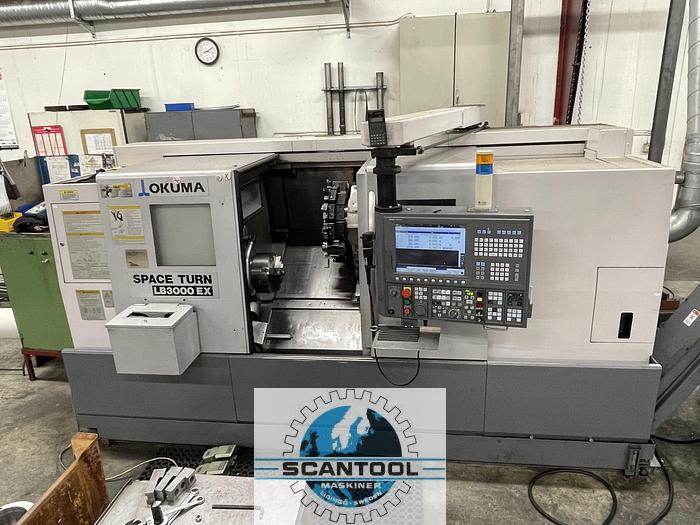

2008 Okuma LB 3000M

No longer available

2008 Okuma LB 3000M


Make                                                                                                                         OKUMA

Model                                                                                                                        LB 3000 M

Y.o.M.                                                                                                                       2008

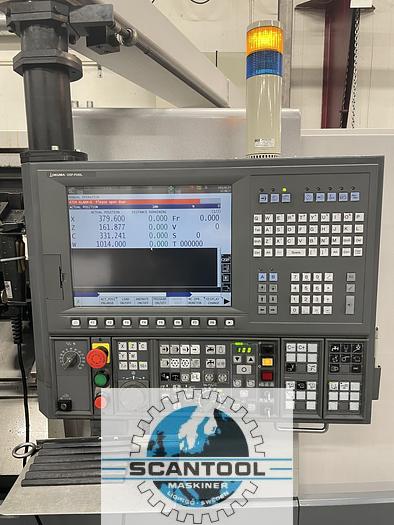

Control                                                                                                                      OSP P 200L

Swing over bed                                                                                                         580 mm

Swing over cross slide                                                                                              470 mm

Turning diameter  max                                                                                             340 mm

Turning Length                                                                                                         1065 mm

Traverses X                                                                                                               260 mm

                          Z                                                                                                      1065 mm

                          C                                                                                                      0,001°

Cuck Size Kitagawa B-212                                                                                       210 mm

Spindle speed                                                                                                            45 - 5.000 rpm

Spindle power                                                                                                           22/15 kW

Spindle bore                                                                                                              80 mm

Spindle nose                                                                                                              A2-6

Spindle bearing diam.                                                                                               120 mm

Rapid traverse X/Z                                                                                                    25/30 m/min

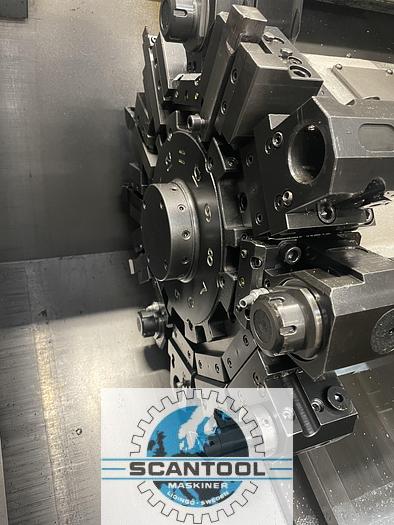

No. Of tools in the Turret                                                                                         12 off

Spindle speed driven tools                                                                                        6000 rpm

Power driven tools                                                                                                    7,1/4,1 kW

Machine dimension LxWxH                                                                                     3,42x2,04x1,97 m

Machine weight                                                                                                        6.000 kg

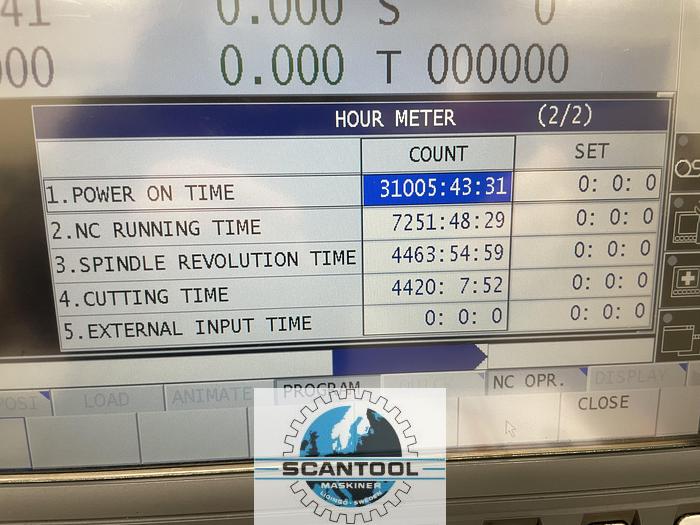

Equipment:         Swarf conveyor, Tail stock, Tool pre setter, Some driven tools and some turning tools, Auto door, Parts catcher, Interface for bar magazine. The machine has only 4500 hours


ModellLB 3000M
