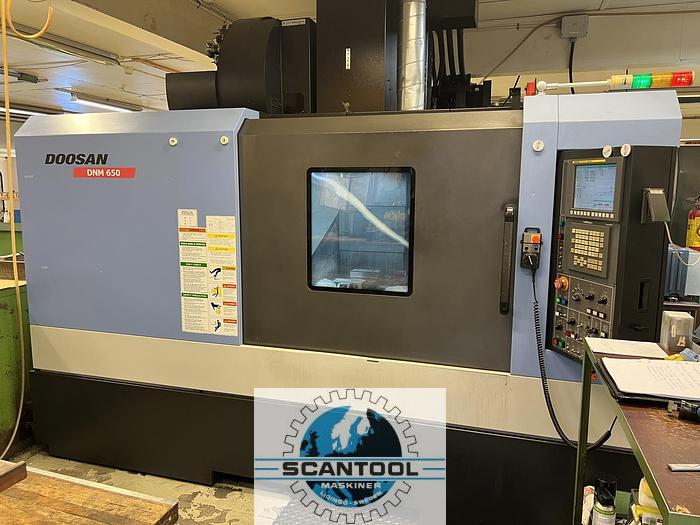

2012 Doosan DNM650

Make                                                                               DOOSAN

Type                                                                                DNM 650

Year of manufacture                                                         2012

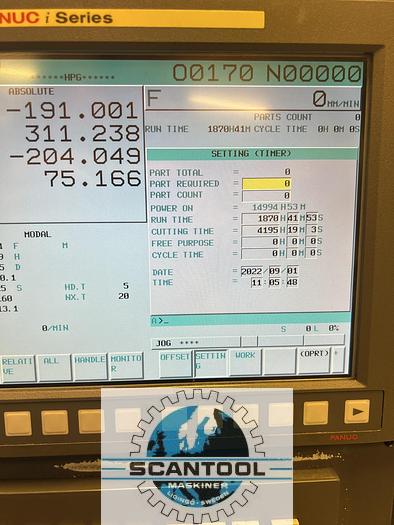

Control system                                                                 Fanuc 18 MB

Data: Table size                                                               580 x 465 mm

Table load                                                                        1,000 kg

Movements X/Y/Z                                                           1,270/670/625 mm

4-axis                                                                              0.001°

Rapid feed                                                                       X/Y/Z 36/36/30 m/min

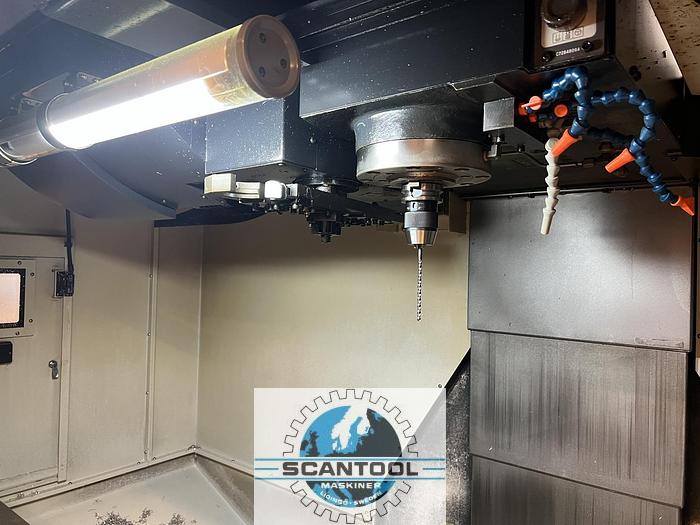

Spindle cone                                                                    ISO 40

Spindle power                                                                  11/15 kW

Spindle speed                                                                   12,000 rpm

Number of places in the tool magazine                              32 pcs.

Tool cone                                                                        BT-40

Tool diameter full/empty                                                  80/125 mm

Tool length                                                                      300 mm

Tool weight                                                                     8 kg

Machine dimensions LxWxH                                            3.35 x 2.77 x 2.82 m

Machine weight                                                               8,500 kg

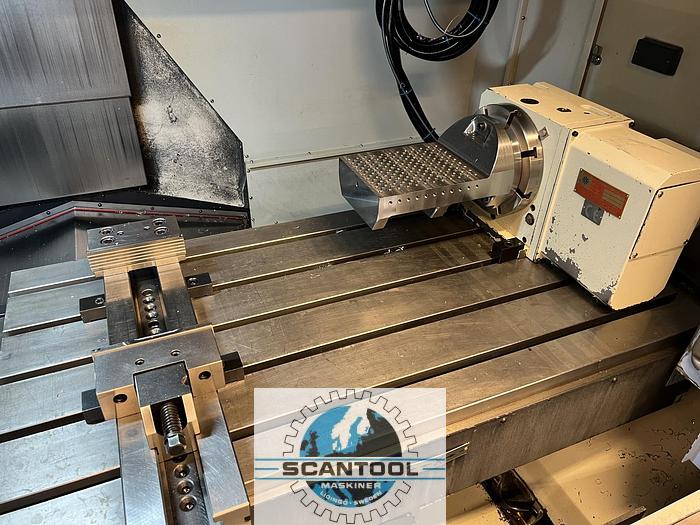

Equipment: Cooling/spindle, Chip conveyor, 4-axis Golden Sun Model CNO 260 OR
