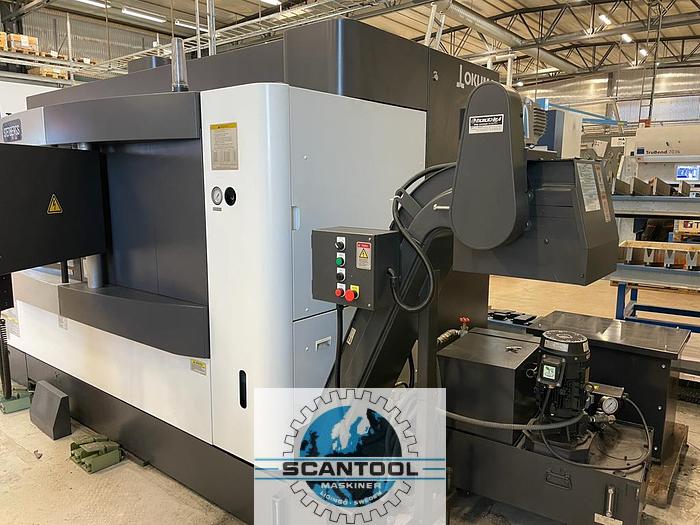

2019 Okuma Multus B300-W

Okuma

Multus B 300 W

Y.o.M. 2019

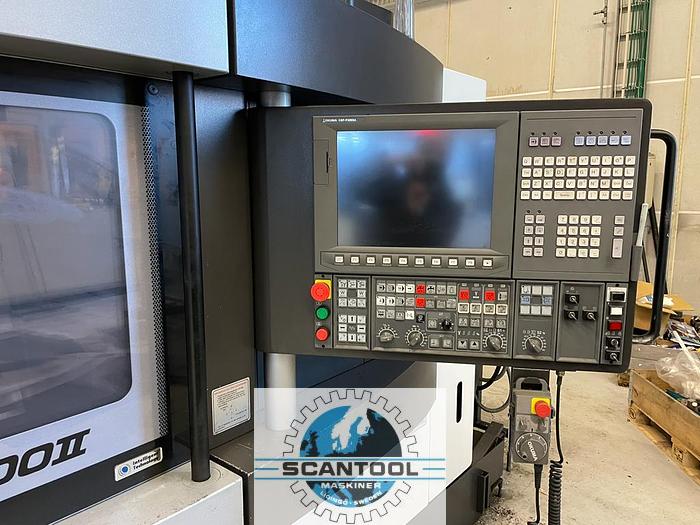

CNC OSP-P300L

Machine specifications

Between centers                                         1000mm

Swing over saddle                                      Dia 630 mm

Max machining dia                                     Dia 450 mm

Max work length                                        900mm

Travels X-axis                                            690mm

Travels Z-axis                                            935mm

Travels Y-axis                                            160mm (+80_-80)

Traverse W-axes                                        1000 mm

Travels C-axis                                            360°(0,001° increment)

Travels B-axis                                            225° -30 + 195 0,001°

Spindle speed                                             38-3800 rpm/min

Spindle power                                            22/15 kW

Spindle torque                                            412 Nm

Speed range                                               2 auto range

Spindle nose                                              JIS A2-8

Spindle bore                                               Dia 80 mm

Bearing dia                                                Dia 120mm

Sub Spindle speed                                      38-5000 rpm/min

Sub Spindle power                                     15/11 kW

Sub Speed range                                         2 auto range

Sub Spindle nose                                        JIS A2-6

Sub Spindle bore                                        Dia 62 mm

Sub Bearing dia                                          Dia 100mm

M-spindle speed range                                50-6000 rpm/min

M-Spindle power                                       11/7,5 kW

Rapid traverse                                            x 40m; y 26m; z 40; w 20 m/min; c 200 rpm

Tool shank                                                 HSK 63

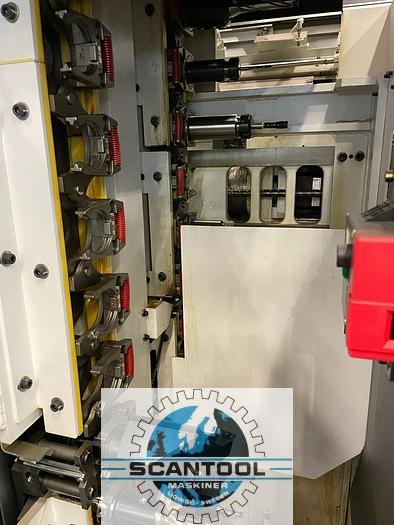

Magazine capacity                                      40-tools

Max tool dia                                              Dia 90/130 mm

Max tool length                                          300 mm

Max tool mass                                            8kg

Tool selection                                             Random

Chip conveyor, Manual tool setting, High pressure pump 0.8 kW, Coolant through tool coolant pump 0.8 kW, Open close chuck via M-code, Work light, prepared high poressure cooling  70 bar, Indexing of multi-tool incl. Cutting force monitoring "Load Monitor", High cut Pro high speed function, Helix function, 20 bar cooling water pressure H1 Revolver, Prepared for measuring probe, Tool life monitoring, Collision protection CAS, STL check tool, Main spindle Hydr 3-back chuck make Kitagawa type BB212-A8 305 mm, Sub Spindle Hydr 3-back chuck make Kitagawa typeB210-A6 210 mm,
