2017 Hyundai Wia KM 2600 MTTS

2017 Hyundai Wia KM 2600 MTTS

Kontakta oss för pris

ellerRing 468-765 25 20

Beskrivning

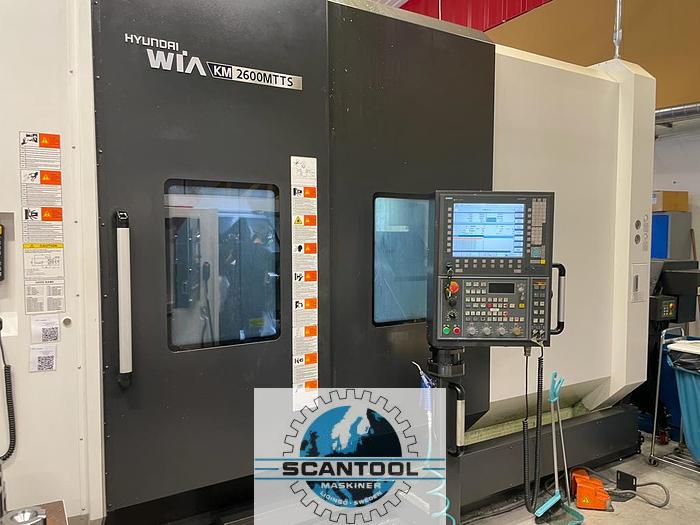

Hyundai WIA KM 2600 MTTS

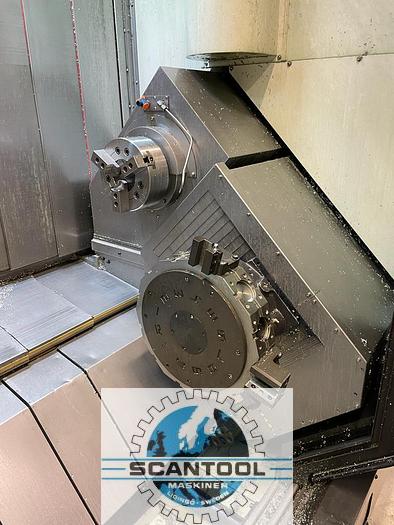

9-AXIS MULTI-TASKING TURNING & MILLING MACHINE WITH B-AXIS MILLING HEAD, ATC SUB SPINDLE & LOWER



Y.o.M. 2017

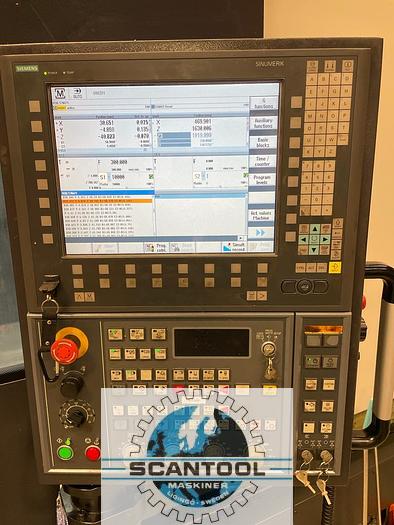

Control system SIEMENS 840D CNC



Max. Turning Dia.

Ø750 mm

Max. Turing Length

1,550 mm

Bar Capacity

80 mm

Chuck Size

Main : 10″, Sub : 10″

Spindle Speed

Main : 4,000, Sub : 4,000 RPM

Spindle Power

Main : 30.0, Sub : 26.0 KW

Spindle Torque (Max./Cont.)

Main : 800/585, Sub : 610/430 Nm

Spindle Nose

Main : A2-8, Sub : A2-8

Spindle Bore

Main : Ø91 , Sub : Ø91 mm

C axis indexing Angle

Main : 0.0001°, Sub : 0.0001° DEG

Travels - X1/Z1/Y/X2/Z2/ZB

705/1,595/250/250/1,500/1,586 mm

Travel - B

240 (-30° ~ +210°) DEG

Mill Head Spindle Speed

12,000 RPM

Mill Head Spindle Power

26.0 kW

Mill Head Spindle Torque (Max/Cont)

120/75 Nm

Turret - Number of Tools

12

Turret - Milling Tool Speed

5,000 RPM

ATC - Tool Storage Capacity

72

ATC - Tool Shank Type

CAPTO C6

ATC - Max. Tool Dia. (W/O)

Ø90/Ø125 mm

ATC - Max. Tool Length

400 mm

ATC – Max Tool Weight                                                                             12 kg

Rapid Travese (X1/Z1/Y/X2/Z2/ZB axis)                                                     40/40/40/30/20/15 m/min





Milling spindle fully controlled, full 5-axis machining.

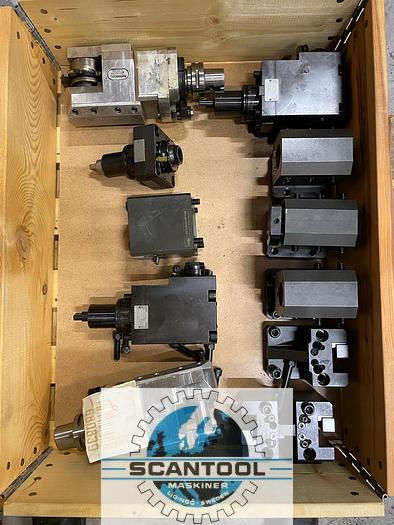

12 driven tool places in turret tool taper BMT-65P attachment, with the machine are 2 pcs angled 2 pcs straight and ext. int. tool holders that are shown in the picture.

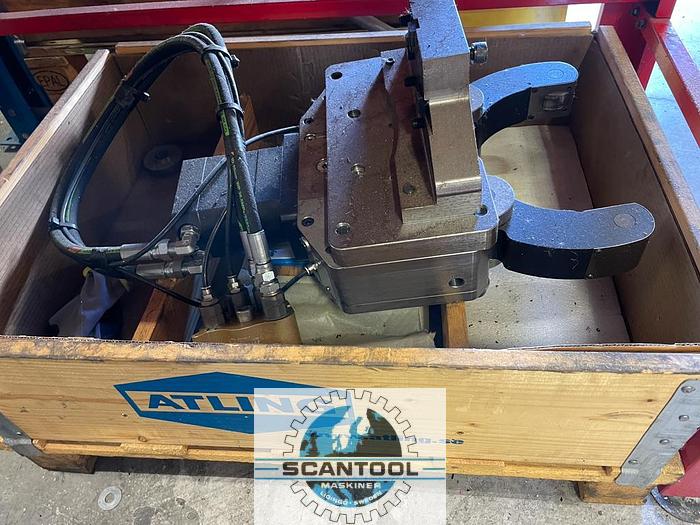

Steady rest ø 40-240 mm, Make Atlings brand new never used, new price today approx. Euro30,000, integrated in lower turret with hydraulic connection

High Precision, High Rigidity Bed Structure

Cross Type Y-axis

Multi tool function 2 positions 0-180°

20 bar through spindle

Absolent air filter system including stand, see pictures

Chip conveyor

Tool measurement in both the upper and lower tool carrier

Auto door

Max 5000 processing hours, only daytime running

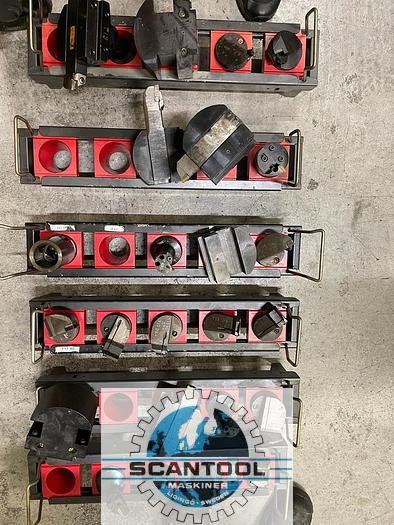

Sandvik Capto C6 that is in the picture is included, 2 tool holders “side milling cutter” as shown in the picture

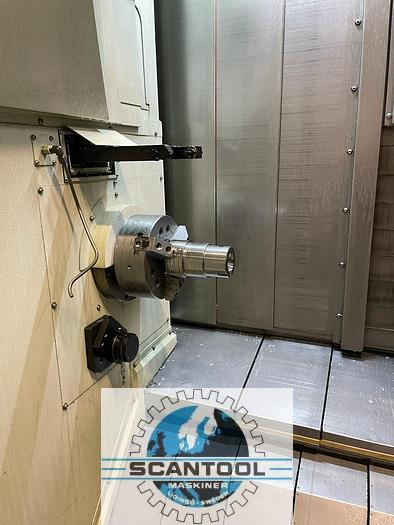

The machine has 10-inch Chucks factory. Kitagawa

Specifikationer

TillverkareHyundai Wia
ModellKM 2600 MTTS
År2017
SkickBegagnad
Lagernummer1162
