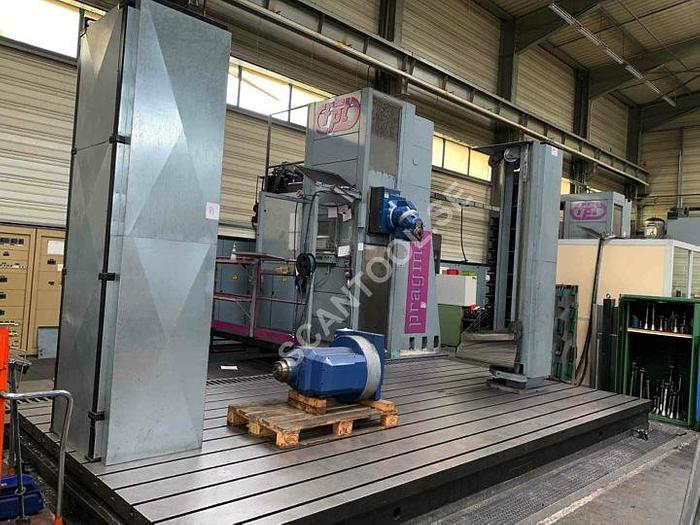

2000 FPT Pragma M60 # 1112

2000 FPT Pragma M60 # 1112

Kontakta oss för pris

ellerRing 468-765 25 20

Beskrivning

Manufacturer: FPT Year of manufacture: 2000 Control system: Simens Sinumerik CNC: Fidia C2 / 4F Working X: 6,000 mm Y: 2,000 mm Z: 1 200 mm Fast transport X, Y, Z: 30 m / min Fast feed X, Y, Z: 15 m / min Spider Pinol: 450 x 530 mm Power: 24 / 27.5 kW Torque: 1 120 Nm Spindle speed: 5,000 rpm Gearbox: 2 speeds Spindle female: ISO50 Head 1 Type. FPT TUPC Power: 24 / 27.5 kW Torque: 1 120 Nm Speed: 5,000 rpm Woman: ISO50: A-axis: 144x2.5 ° C-axis: 144x2.5 ° Head 2 Speed: 18,000 rpm A-axis: 144x2.5 ° C-axis: 144x2.5 ° Head 3 Speed: 24,000 rpm A-axis: 144x2.5 ° C-axis: 144x2.5 ° Main gear stations: 3 pcs ATC Positions: 12 HSK63 12 ISO50 Max Tool weight: 20 kg Machine weight: 50 tons Cooler Chip conveyor Filter

Specifikationer

TillverkareFPT
ModellPragma M60
År2000
SkickAnvänd
Lagernummer1112
