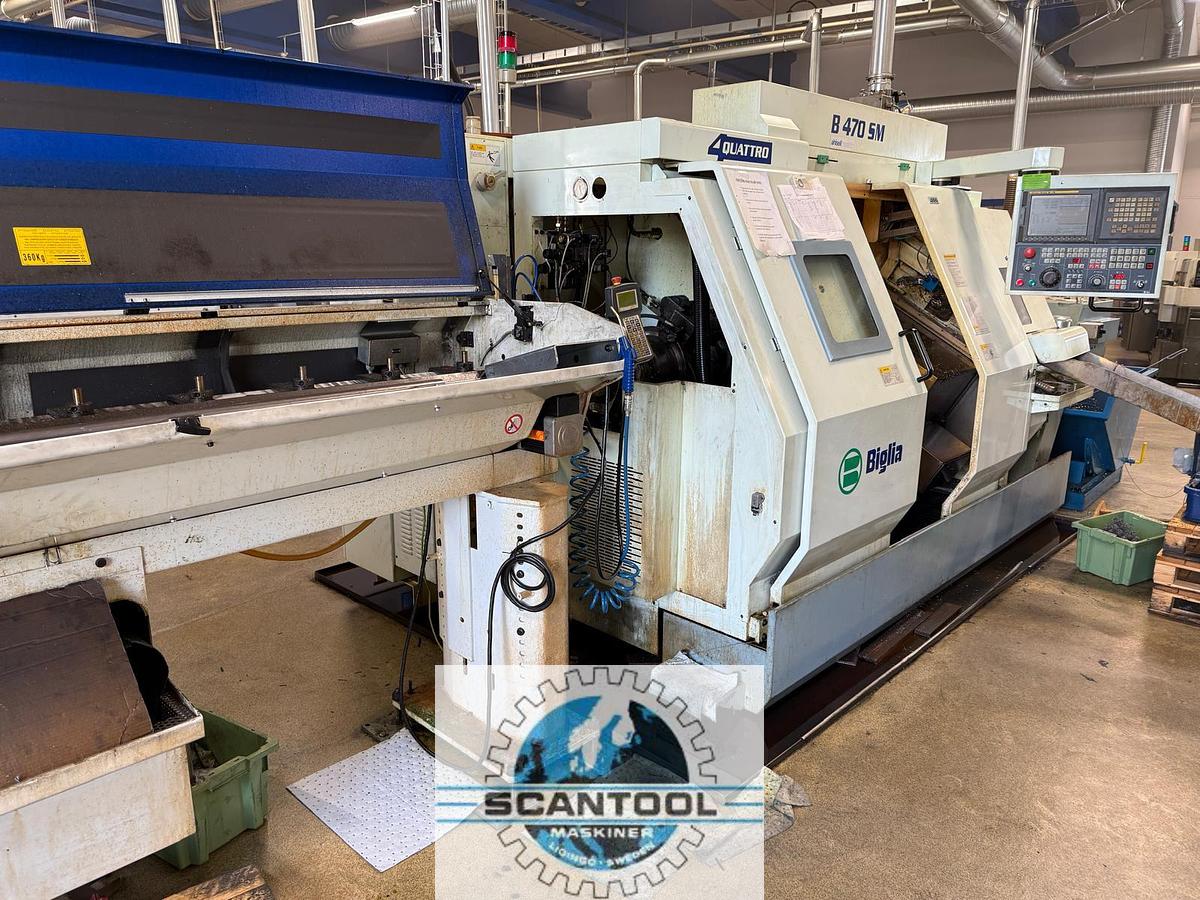

2004 BIGLIA B.470/SM

Fabrikat                                                                  Biglia

                          Typ                                                                          B.470/SM

                          Tillverkningsår                                                       2004

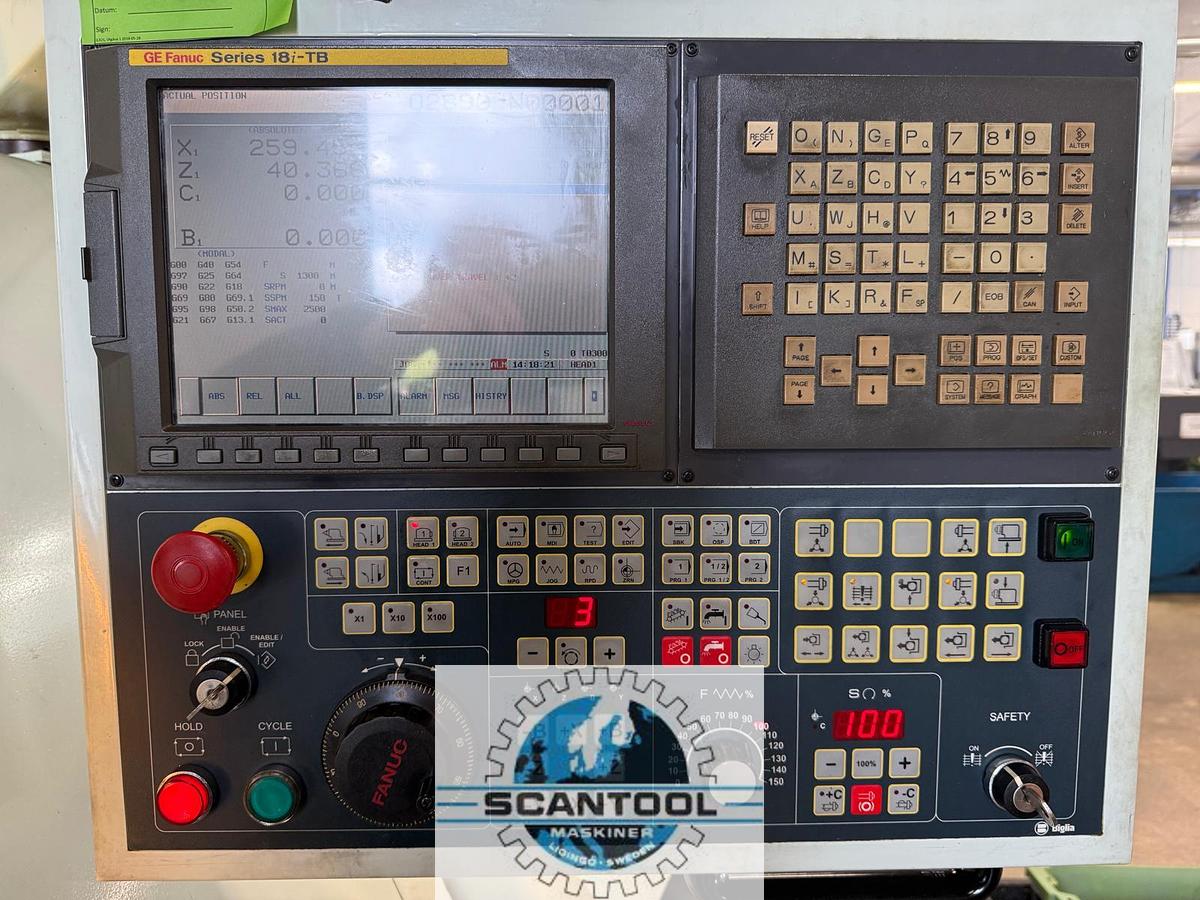

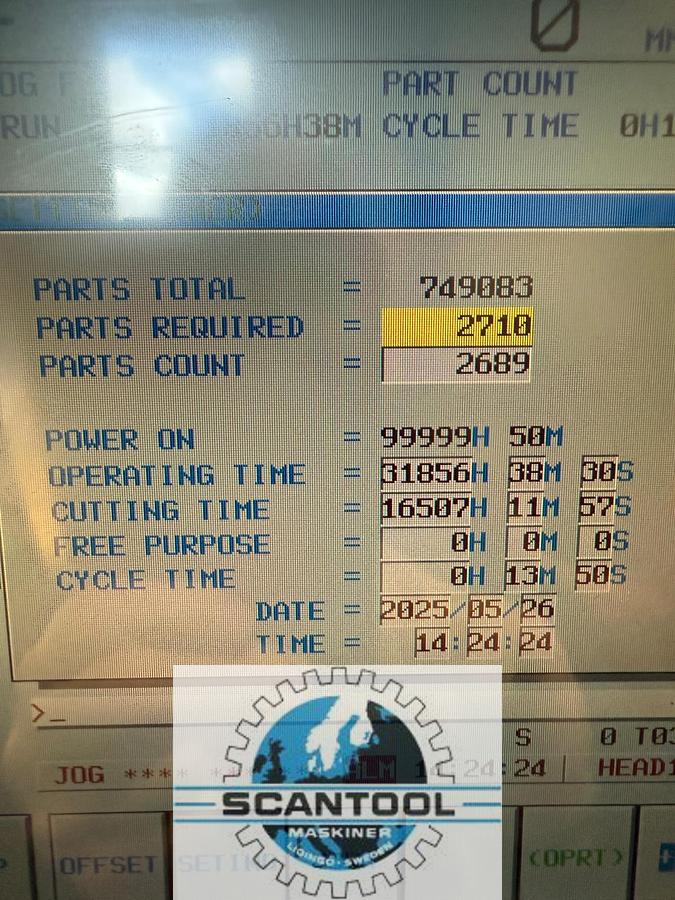

                          Styrsystem                                                             Fanuc 18i-TB

Data:

                          Swing över bädd                                                  220 mm

                          svarvdiameter                                                       520 mm

                          Svarvlängd                                                             250 mm

                          Rörelser           X1/X2                                           160/160 mm

                                                     Z1/Z2                                           390/240 mm

                          Snabbmatning X1,2/Z1,2                                    20,20/24,20 m/min

                          Huvud spindel

                          Spindelnos                                                             ASA 6”

                          Spindelborrning                                                    80 mm

                          Spindel lager diameter                                       110 mm

                          Stångkapacitet                                                      68 mm

                          Spindelvarvtal                                                       4.000 v/min

                          Spindeleffekt                                                         26 kW

                          C-Axel                                                                     0,001°

                          Sub spindel

                          Spindelnos                                                             ASA 5”

                          Spindelvarvtal                                                       4.000 v/min

                          Spindelborrning                                                    55 mm

                          Stångkapacitet                                                      45 mm

                          Spindellager diameter                                        80 mm

                          Spindeleffekt                                                         11 kW

                          C-Axel                                                                     0,001°

                          Snabbmatning B                                                  30 m/min

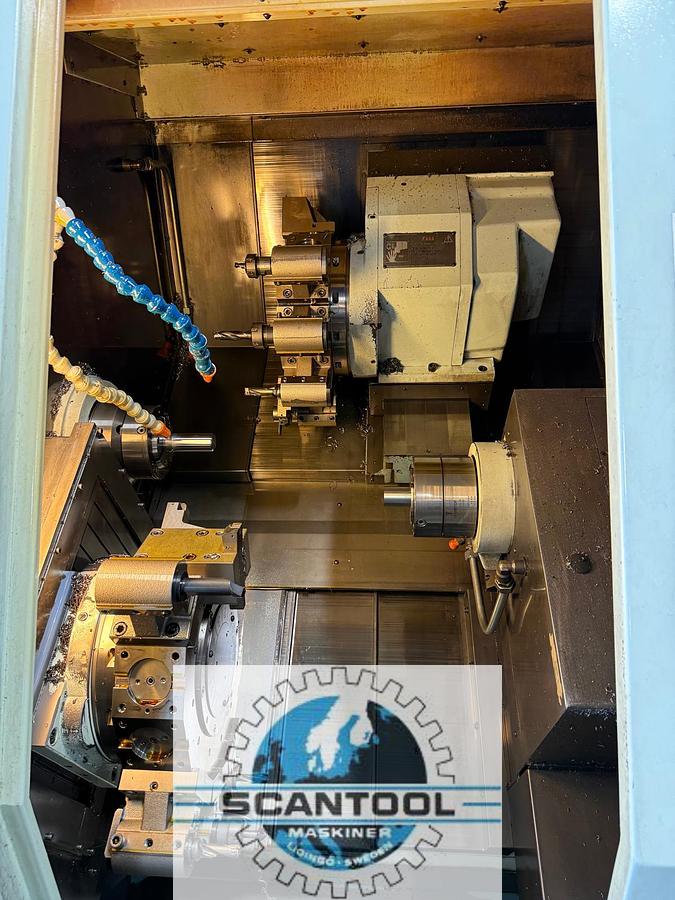

                          Revolver 1

                          Verktygsrevolver                                                   12 lägen

                          Rotations tid                                                         0,15 sec.

                          Drivna verktyg spindelhastighet                       4.000 v/min

                          Effekt drivna verktyg                                           3,7 kW

                          Revolver 2

                          Verktygsrevolver                                                   12 lägen

                          Rotations tid                                                         0,15 sec.

                          Drivna verktyg spindelhastighet                       4.000 v/min

                          Effekt drivna verktyg                                          3,7 kW

                          Chuckar                                                                  Heinbuch hylschuckar 65 mm

                          Maskinen dimensioner L/B/H                          4150/2100/2200 mm

                          Maskinens vikt                                                     6,900 kg

Utrustning:      Spåntransportör Lamell, Stångmagasin Iemca Master 880/MP, Hållande verktyg fasta och roterande ingår.
