2011 Mori Seiki NL 2500 SY/700

Fabrikat                                                                                             Mori-Seiki

Typ                                                                                                     NL 2500SY/700

Tillverkningsår                                                                                 2011

Styrsystem                                                                                       MXS 850 IV

Data:                Max swing över bädd                                                                    755 mm

Max swing över tvärslid                                                                740 mm

Max svarvdiameter                                                                        366 mm

Svarvlängd                                                                                       785 mm

Rörelser           X                                                                              260 mm

Y                                                                              100 +-50 mm

Z                                                                              795 mm

Snabbtransport X/Y/Z                                                                    30/20/50 m/min

Spindel effekt                                                                                  26/22 kW

Spindelhastighet                                                                             4 000 v/min

Stångkapacitet                                                                                80 mm

Chuckdiameter                                                                               250 mm

Spindelnos                                                                                       JIS A2-8

Spindelindexering                                                                          0,001°

Sub spindeleffekt                                                                            11/7,5 kW

Sub spindelhastighet                                                                     6 000 v/min

Sub Stångkap.                                                                                 80 mm

Sub spindel Chuckdiameter                                                         150 mm

Sub spindelns nos                                                                          JIS A2-5

Sub spindelindexering                                                                   0,001°

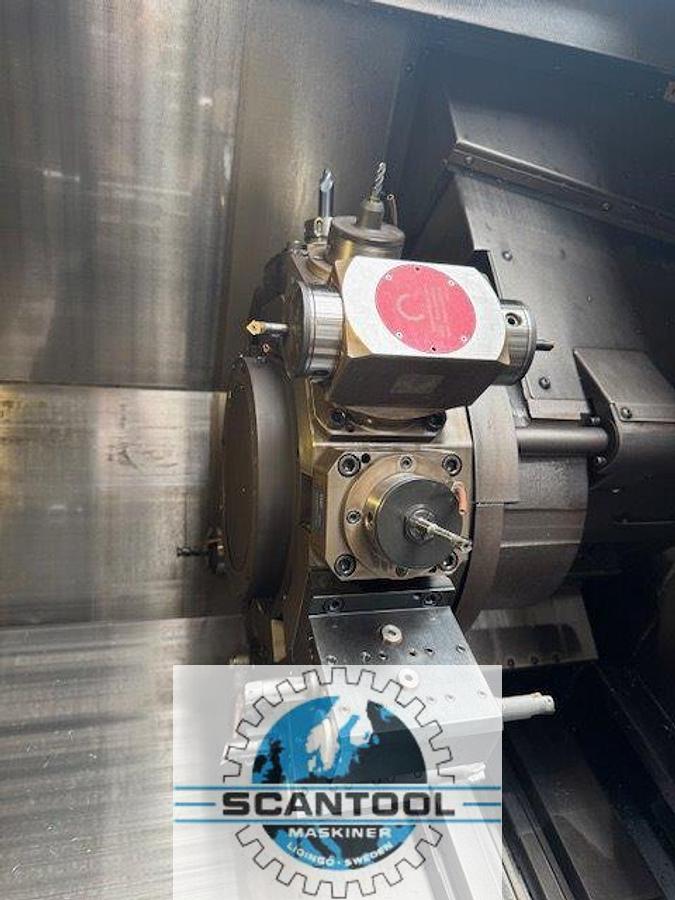

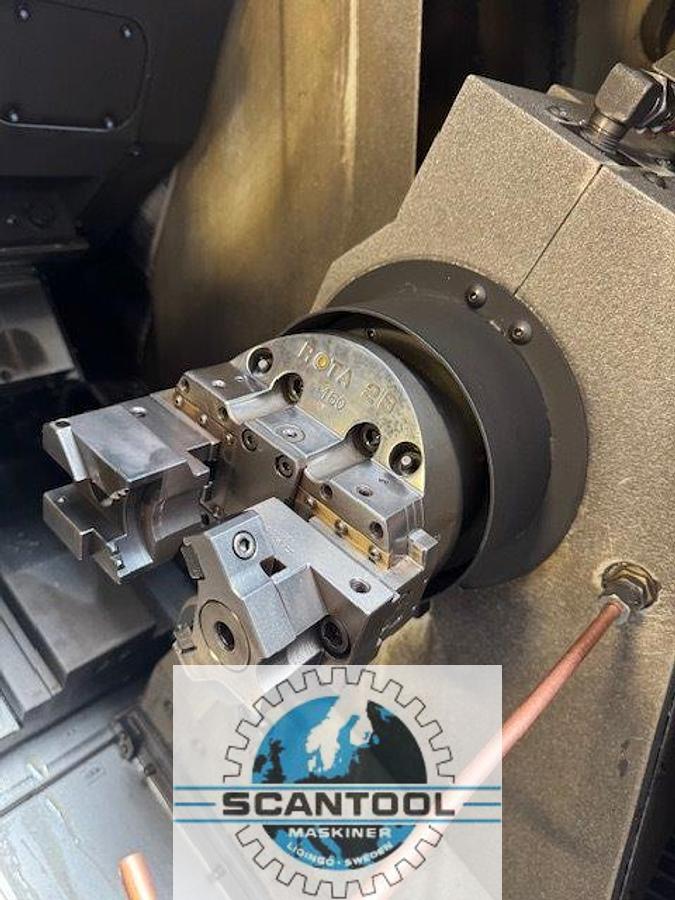

Antal verktyg i revolverhuvud/drivna                                        12/12 st.

Effekt drivna verktyg                                                                      5,5 kW

Spindelhastighet drivna verktyg                                                 6 000 v/min

Maskinens vikt                                                                                6 200 kg

Maskinmått LxBxH                                                                         4,34 x 2,00 x 2,120 m

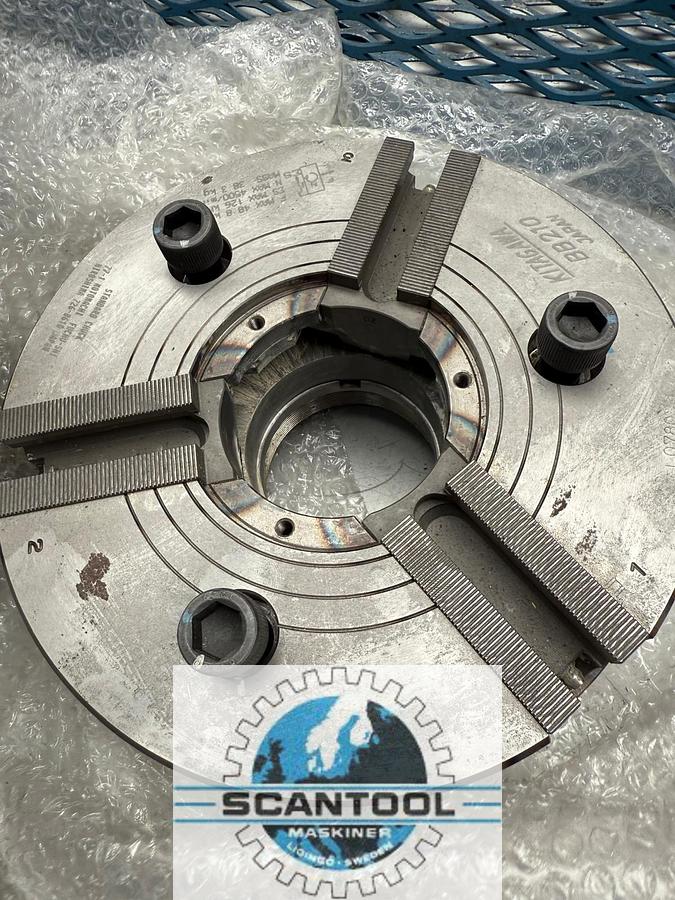

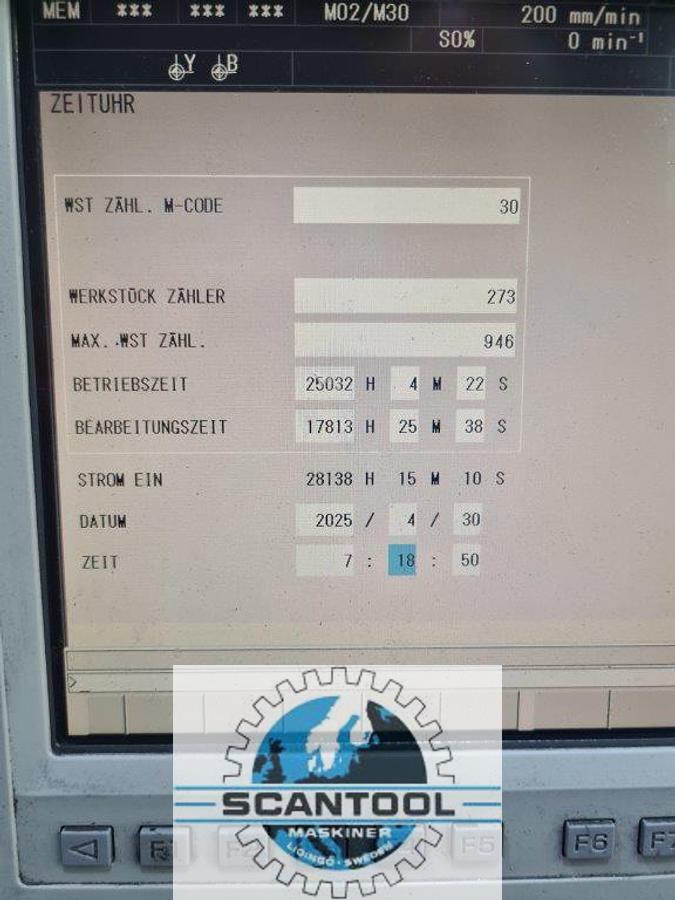

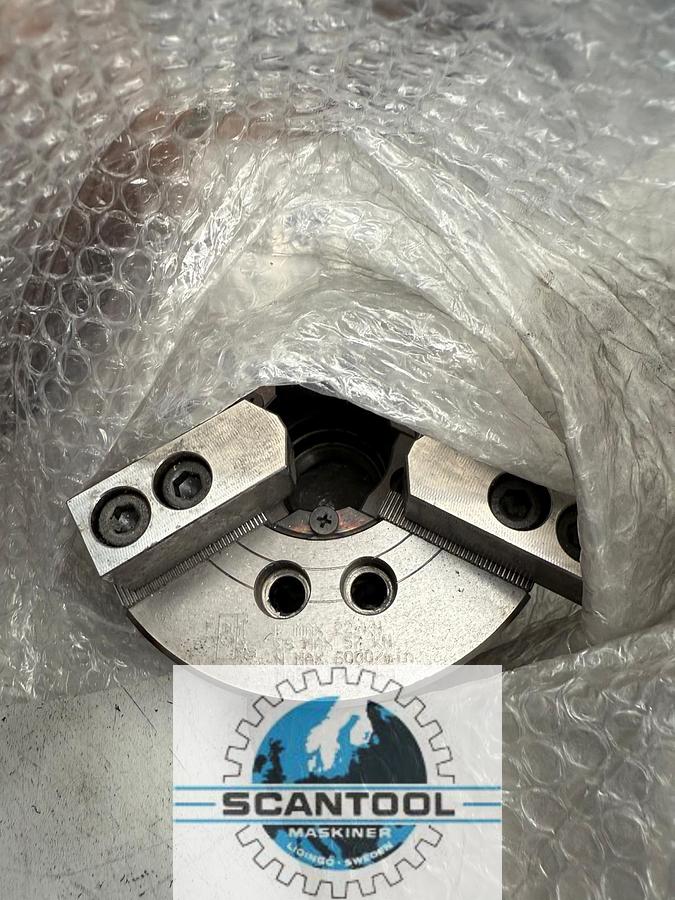

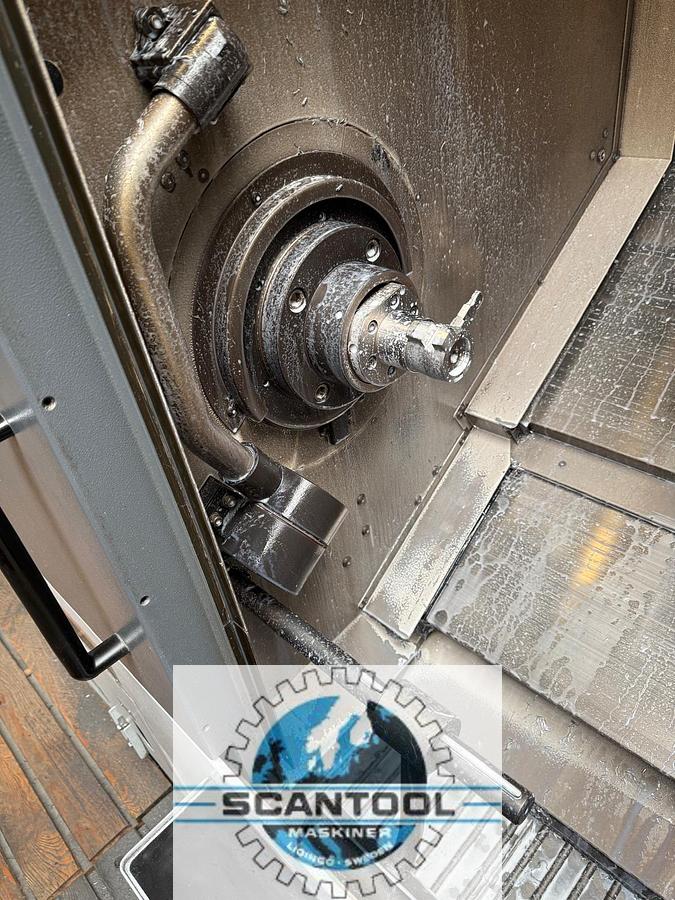

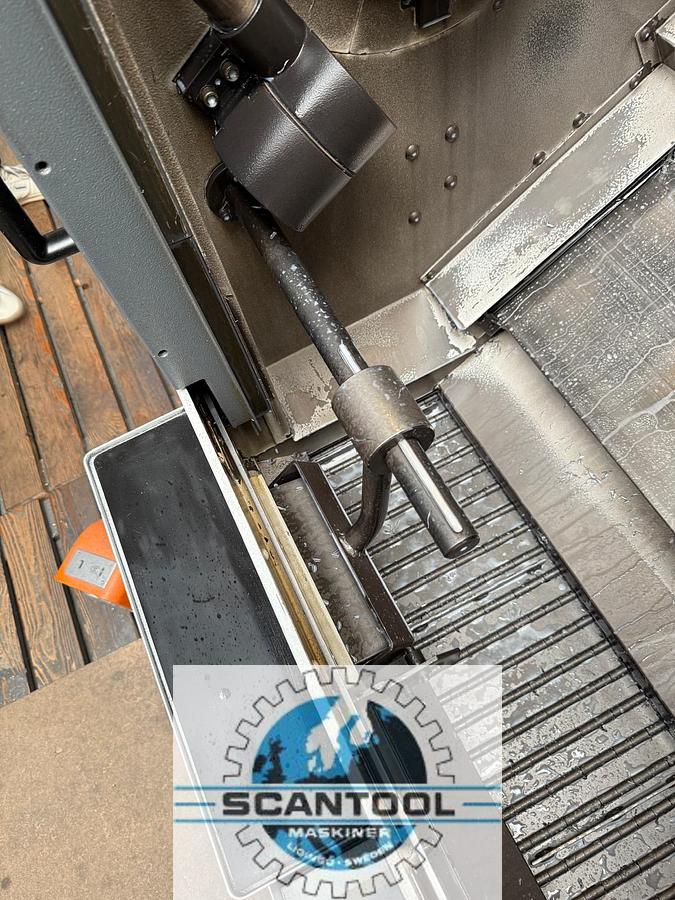

Utrustning:     Spåntransportör, 3-backschuck Kitagawa BB-210 i huvudspindeln och en Kitagawa B 206 i subspindeln, Delfångare, Diverse verktygshållare, Delfångare, Gränssnitt för stångmatning, Synkroniserad gängning, Maskinen har 17 800 arbetstimmar.
