2016 Matsuura VX-1000

Tillverkare                                                                                       Matsuura

Modell                                                                                              VX-1000

Tillverkningsår                                                                                 2016

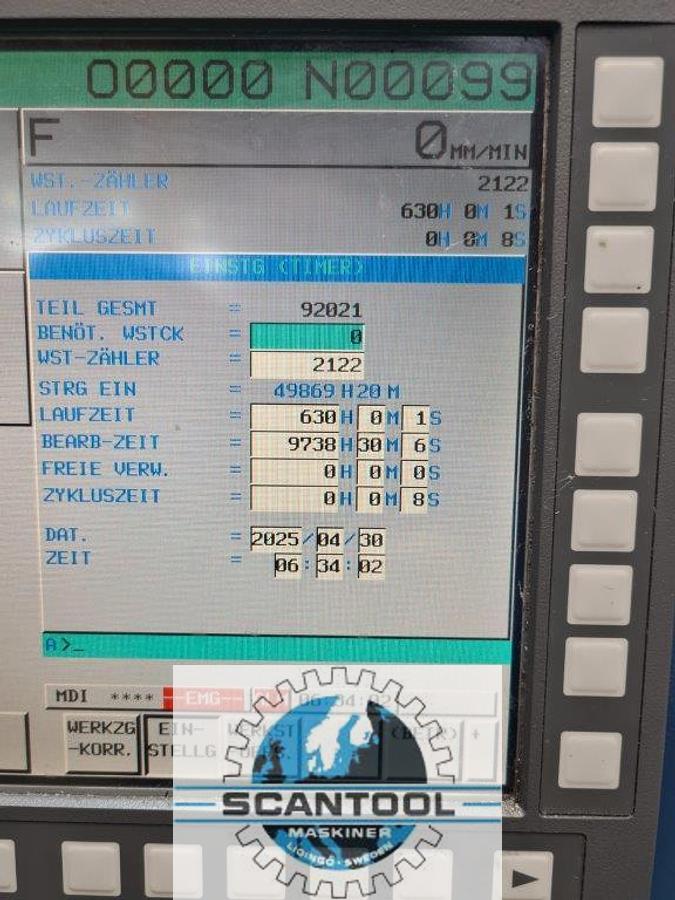

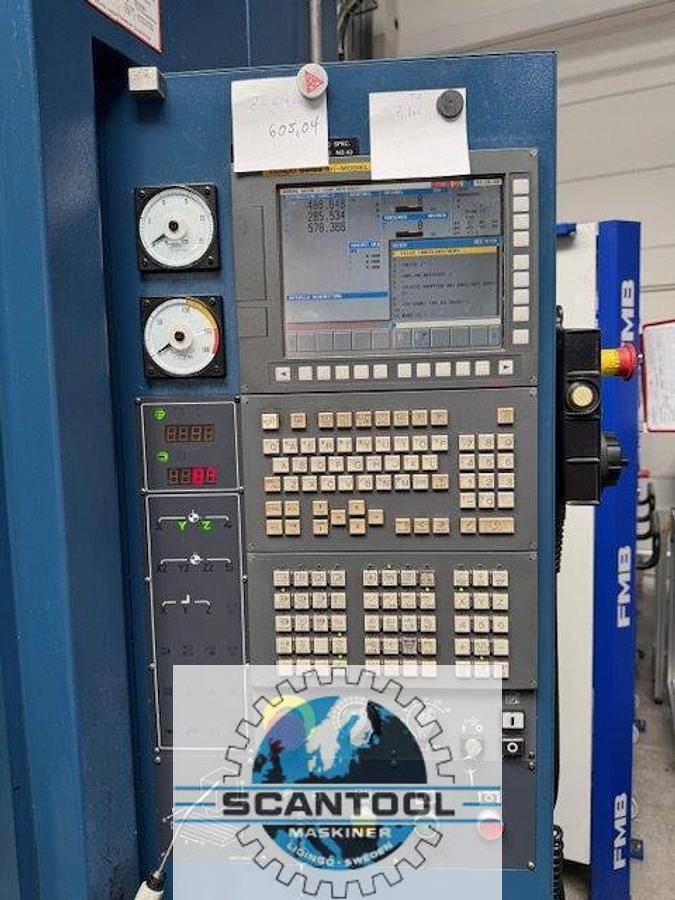

Styrning                                                                                            Fanuc 31iB

Data:                Bordstorlek                                                                                      1200 x 600 mm

Bordbelastning                                                                               500 kg

Rörelser            X/Y/Z                                                                      1020/610/610 mm

Snabbmatning X,Y/Z                                                                       40,40/36 m/min.

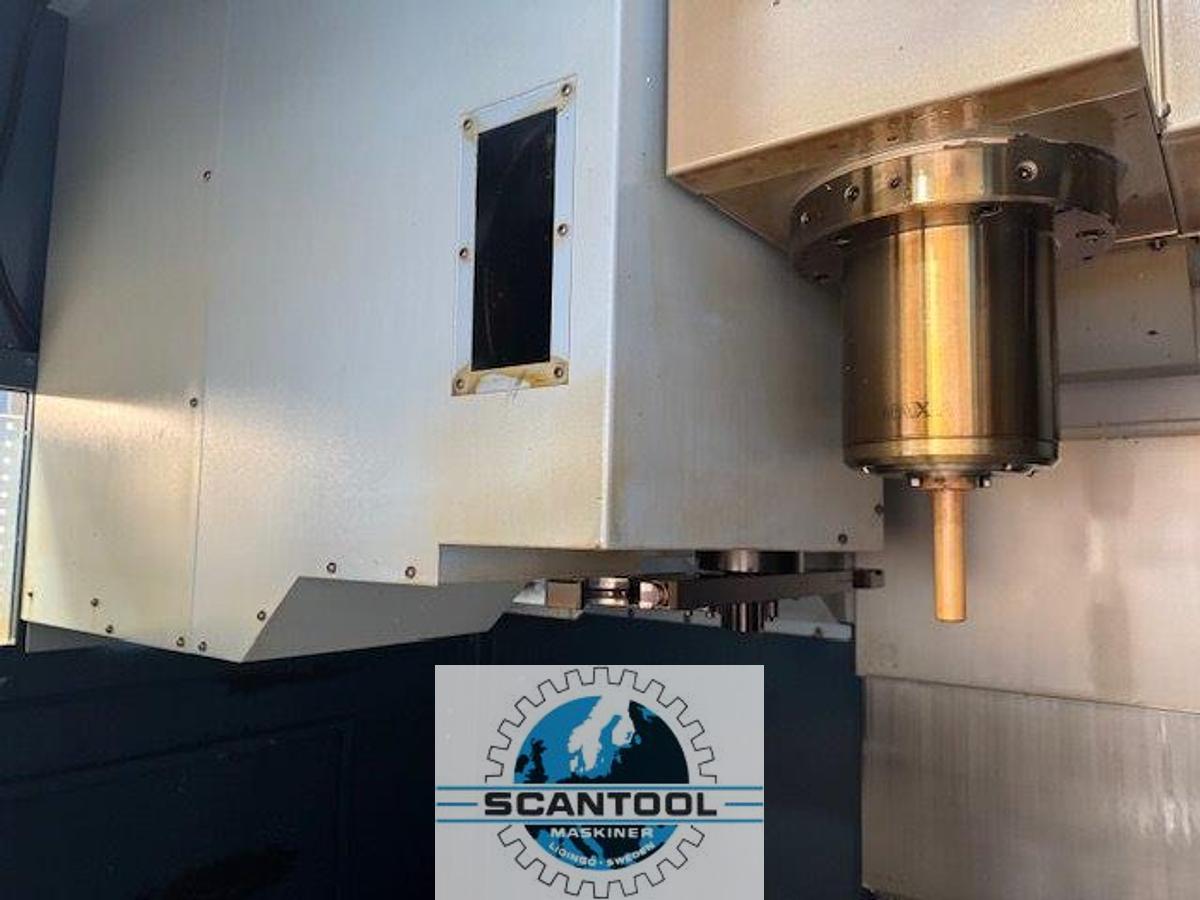

Spindelkona                                                                                     ISO 40

Spindeldrivmotor                                                                           18,5/15 kW AC

Spindelhastigheter                                                                         40 – 15000 v/min

Verktygskona                                                                                   BT-40 Big plus

Verktygsmagasinpositioner                                                         48 stationer

Verktygsdiameter med/utan intilliggande verktyg                 96/150 mm

Verktygslängd                                                                                  350 mm

Verktygsvikt                                                                                     10 kg

Maskinmått LxBxH                                                                         2,52 x 2,85 x 3,4 m

Maskinvikt                                                                                        8.000 kg

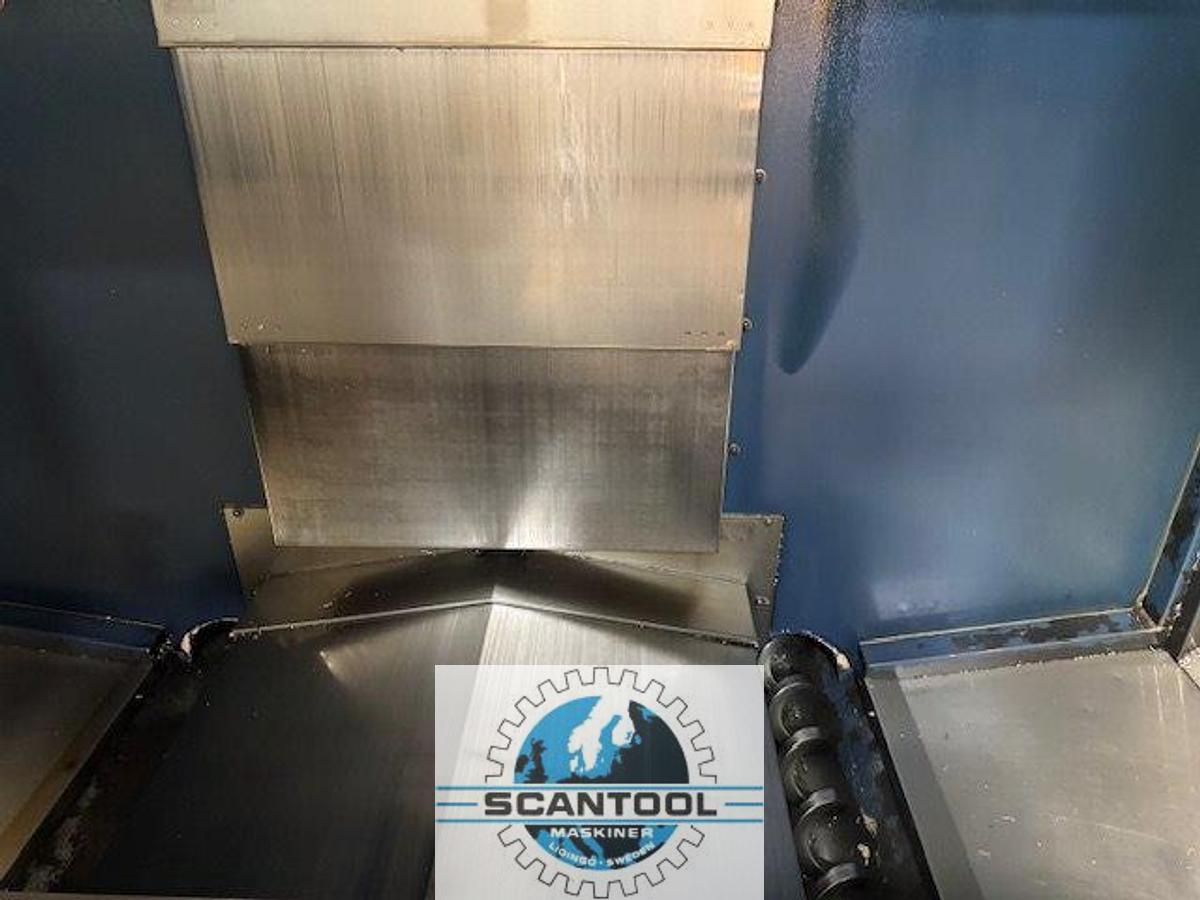

Utrustning:     Spåntransportör, kylvätska genom spindeln 20 bar, 8 extra M-funktioner, Renishaw Probe OMP 60, Verktygsbrottskontroll.
