2012 Mori Seiki NH 6300 DCG APC 6 # 1133
No longer available
2012 Mori Seiki NH 6300 DCG APC 6 # 1133
Beskrivning
Brand: Mori Seiki
Control system: Fanuc MSX 711 MAPPS 3
Year of manufacture: 2012
SPECIFICATIONS:

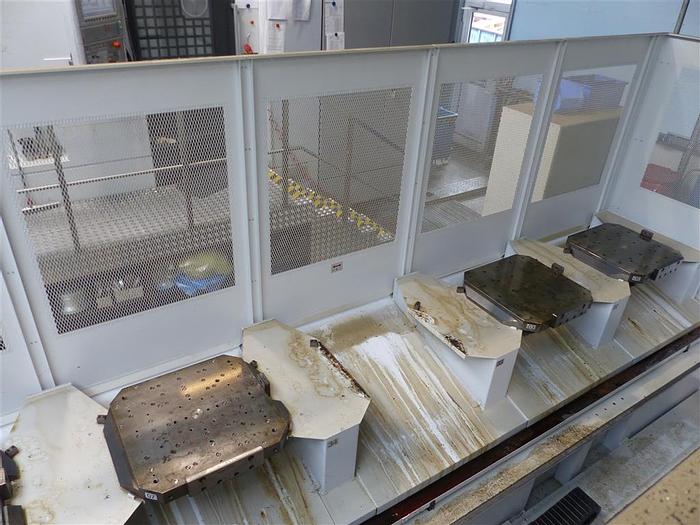

Pallets
Number: 6
Size: 630 x 630 mm
Probe for tools and measurement: Metrol
Workpiece:
Max diameter: 1,000 mm
Max height: 1,300 mm
Max weight: 1,200 kg
Milling spindle
Kona: HSK-A100
Power: 30/25 kW
Torque: 600 Nm
Speed: 10,000 min-1
Movements:
B-axis: 0.001 °
X-axis: 900 mm
Y-axis: 800 mm
Z-axis: 980 mm
Fast feed (X / Y / Z): 50,000 mm / min
ATC tools
Capacity: 240 pcs
Max tool diameter, free: 320 mm
Max tool length: 630 mm
Max tool weight: 30 kg
Connection power: 78 kVA
Size (LxWxH): 5.6 x 3.7 x 3.3 m
Weight: 21 tons
Equipment, including:
Chip conveyor
Cooling through the milling spindle: 50 bar
Tool probe: Renishaw
Rotating windows
Tool breakage monitoring
Specifikationer
Tillverkare | Mori Seiki |
Modell | NH 6300 DCG APC 6 |
År | 2012 |
Skick | Begagnad |
Lagernummer | 1133 |
