1999 Niigata HN80C

Make                                                                                                                                                                                  NIGATA

                                                     Modell                                                                                                                                                                                HN-80-C

                                                     Year of manufacture                                                                                                                              1999

                                                     Control                                                                                                                                                                               Fanuc 160 iMA

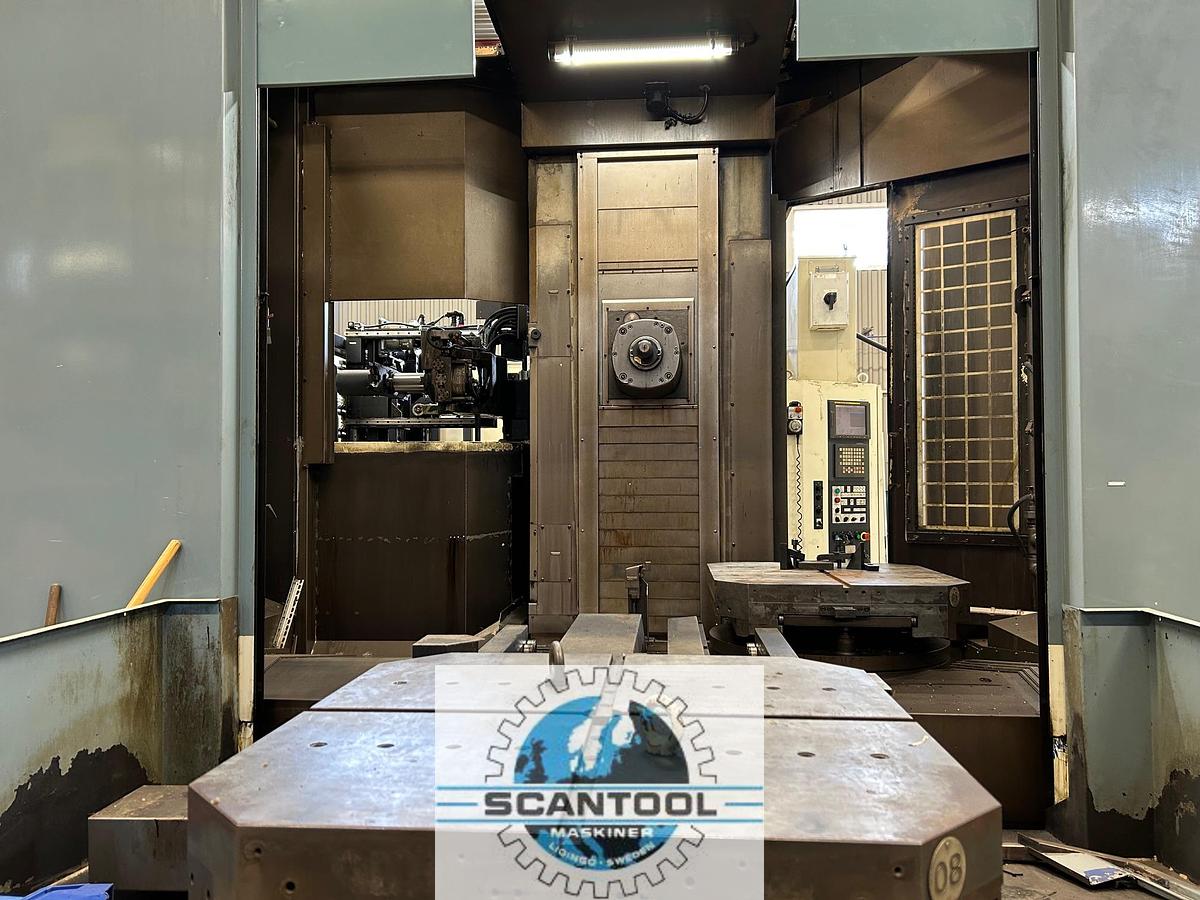

Data:                                            No. Of paletts                                                                                                                                         2 off

                                                     Palett size                                                                                                                                               800 x 800 mm

                                                     Palett load                                                                                                                                              1.500 kg

                                                     Palett index                                                                                                                                            0,001 deg.

                                                     Traverses         X/Y/Z                                                                                                                           1.270/1.020/920 mm

                                                     Feeds                                            X/Y/Z                                                                                                                          1-4.000 mm/min

                                                     Rapids                                          X/Y/Z                                                                                                                         18 m/min

                                                     Spindle taper                                                                                                                                          ISO-50

                                                     Spindle power                                                                                                                                        25 kW

                                                     Spindle speed                                                                                                                                         6.000 rpm

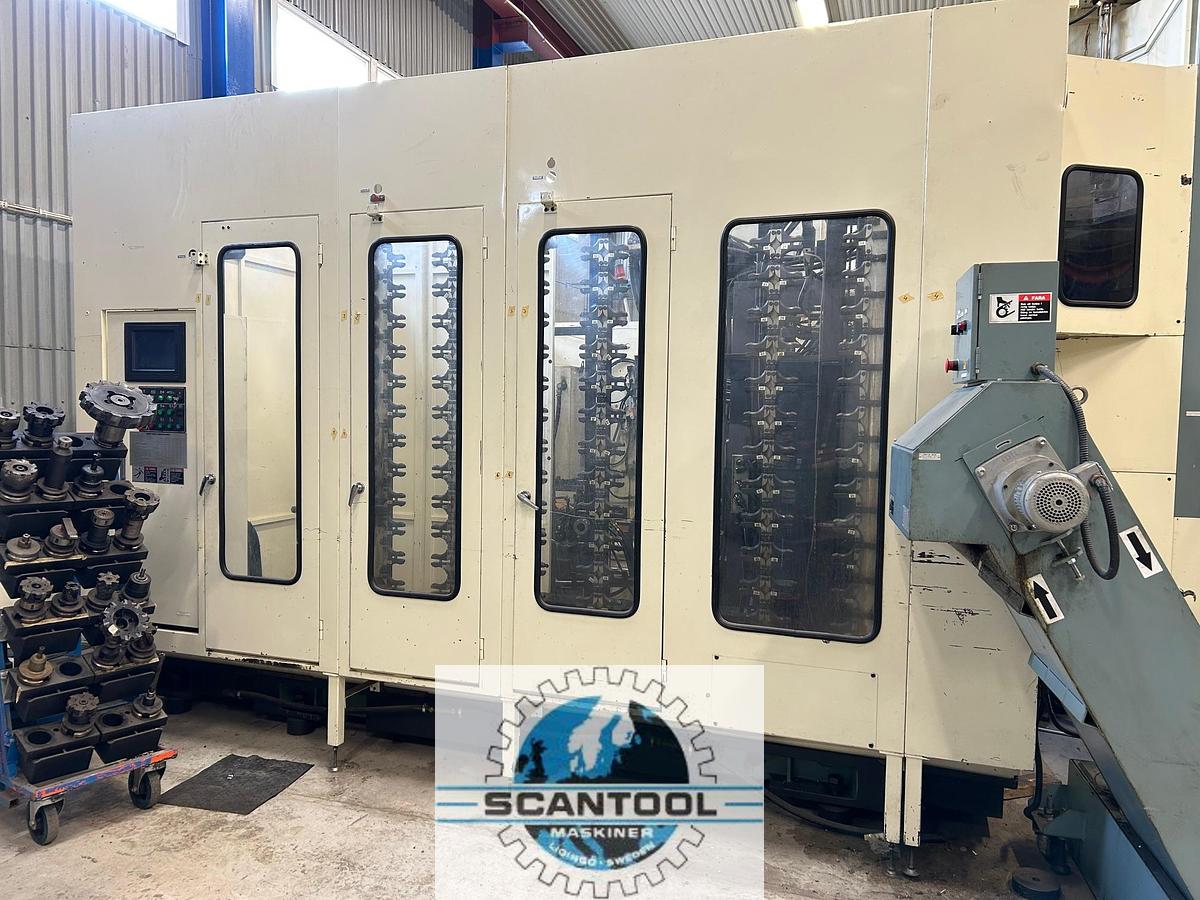

                                                     No. Tool pockets in tool magazine                                                                           178 off

                                                     Tool taper                                                                                                                                               MAS BT-50

                                                     Tool diameter min/max                                                                                                                         100/240 mm

                                                     Tool length                                                                                                                                             550 mm

                                                     Max Tool weight                                                                                                                                                               30 kg

                                                     Tool changing time                                                                                                                               10 sec.

                                                     Machine measurement LxWxH                                                                                 5900x8100x3750 mm

                                                     Machine weight                                                                                                                                      20 ton

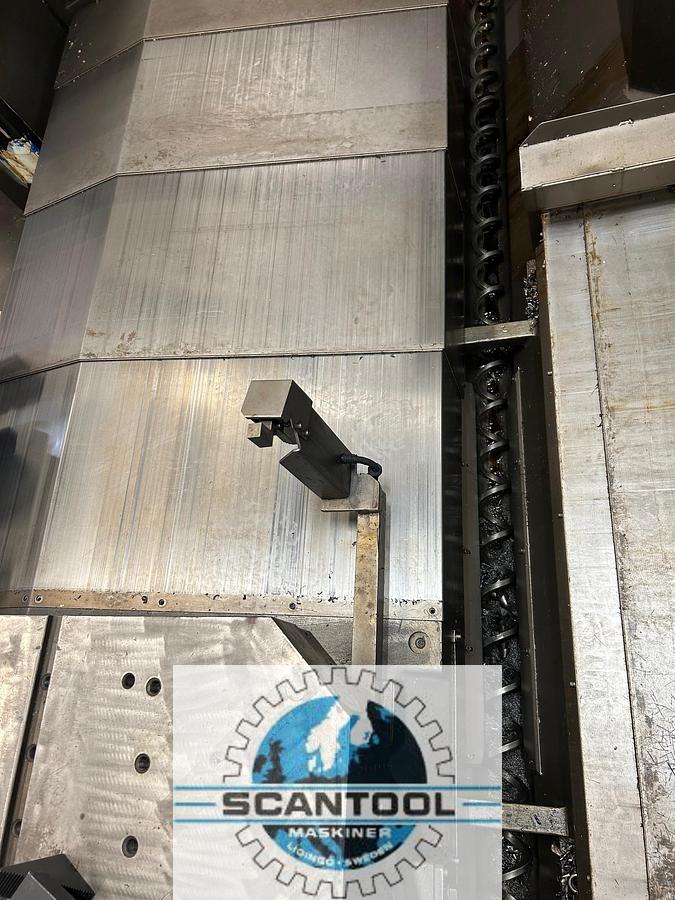

Utrustning:       Swarf conveyor, Coolant through spindle 20 bar, Cutting force detection
