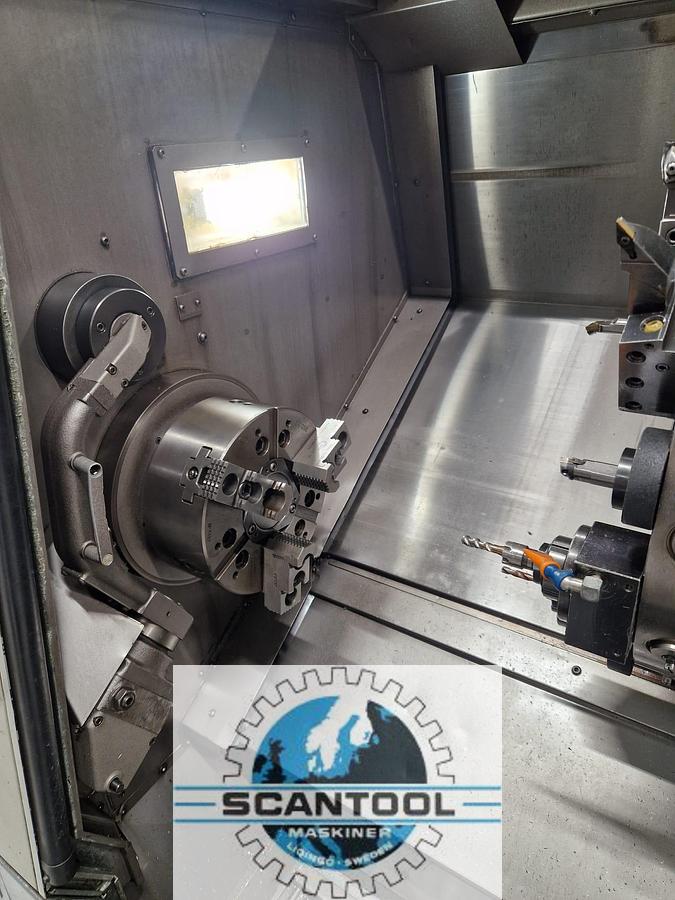

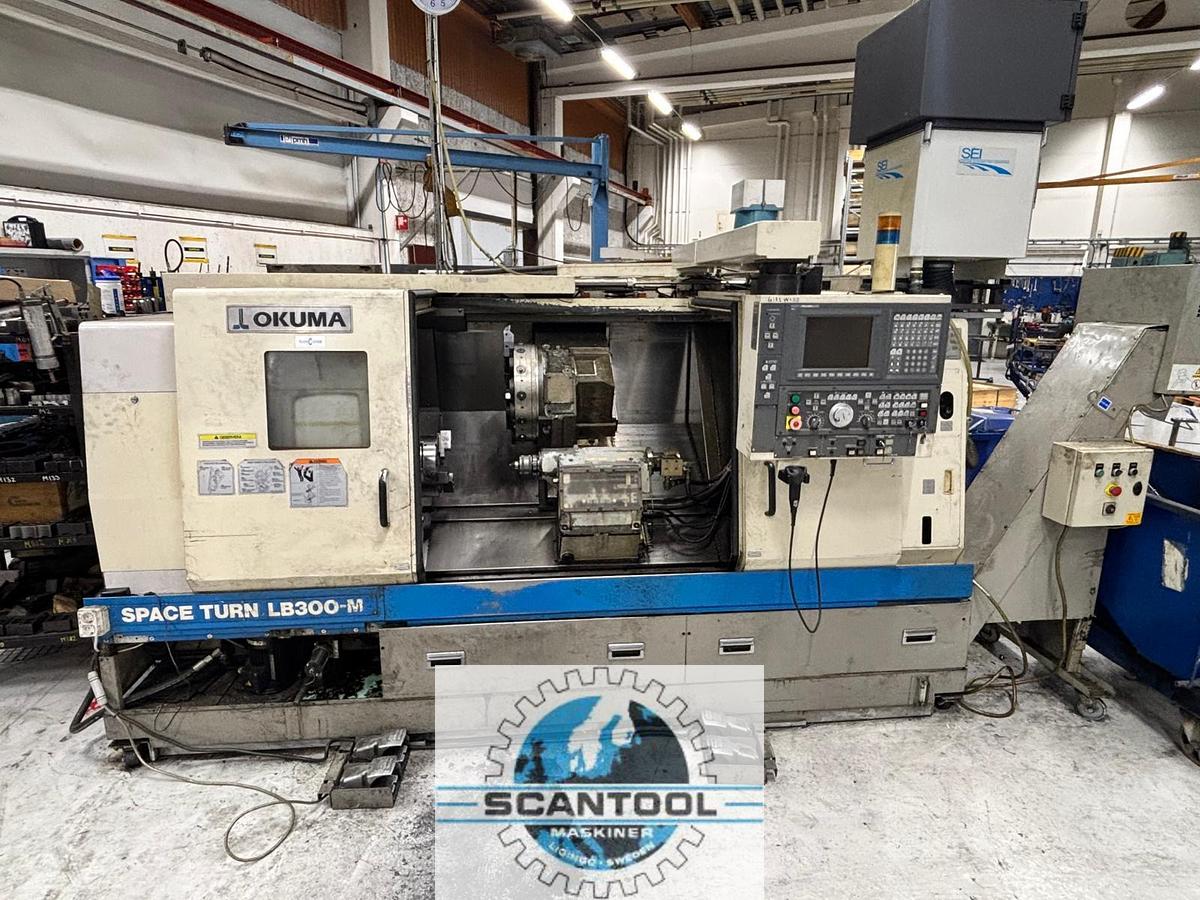

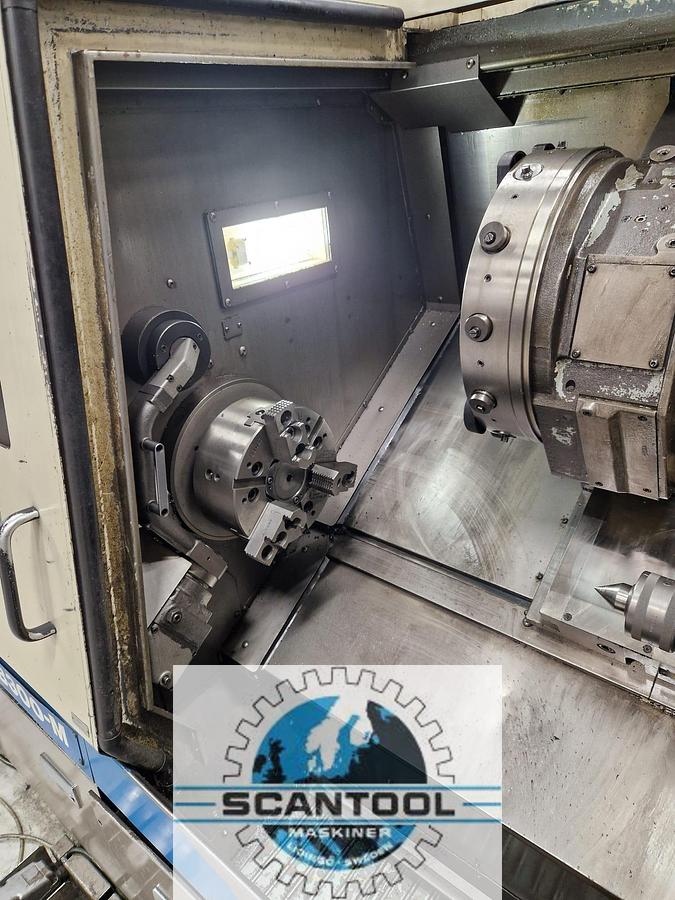

2002 Okuma LB 300 M

Make                                                                                                 OKUMA

Type                                                                                                   LB 300 M

Year of manufacture                                                                  2002

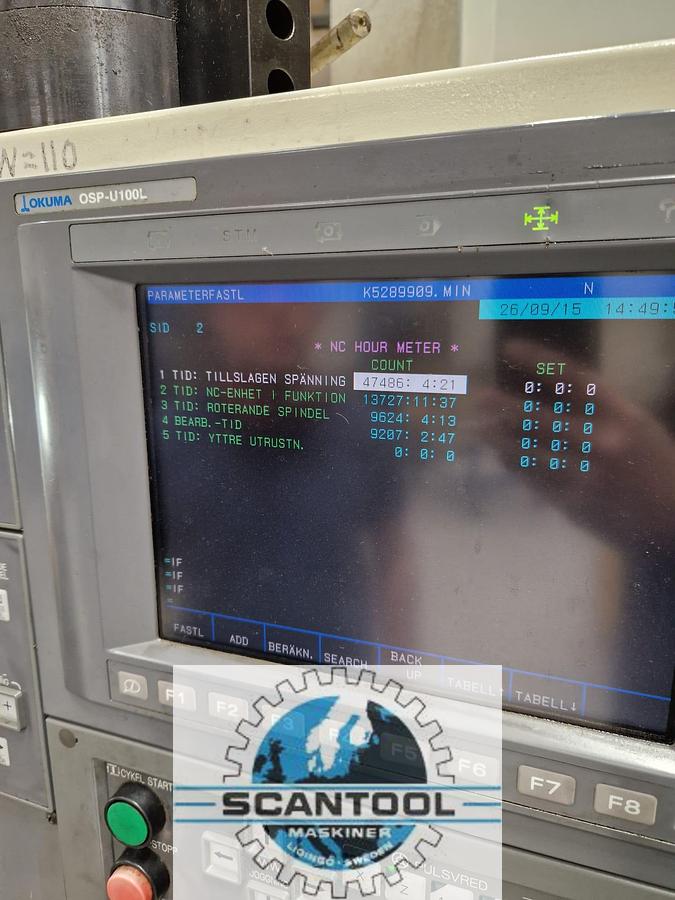

Control system                                                                            OSP U 100L

Swing over bed                                                                             530 mm

Swing over cross slide                                                              420 mm

Max. turning diameter                                                              340 mm

Turning length                                                                               1000 mm

Travel X                                                                                             260 mm

Z                                                                                                          1020 mm

C                                                                                                         0.001°

Feed rate X/Z                                                                                 0.001 – 1000 mm/min

Rapid traverse X/Z                                                                      20/25 m/min

Spindle speed (2 gear ranges)                                              38 – 3,800 rpm

Spindle power                                                                              22/15 kW

Spindle bore                                                                                  80 mm

Bar capacity                                                                                  65 mm

Spindle nose                                                                                 A2-8

Spindle bearing diameter                                                       120 mm

Spindle torque                                                                              410 Nm

Number of tools in turret/driven                                         12/12

Tool interface                                                                                VDI 40

Driven tool speed                                                                       4,500 rpm

Driven tool power                                                                       5.5/3.3 kW

Chuck diameter                                                                          315 mm

Machine dimensions                                                                3310 x 1895 x 1925 mm

Machine weight                                                                           6,000 kg

Equipment:  Chip conveyor, Tailstock with hydraulic locking, Tool measuring equipment,

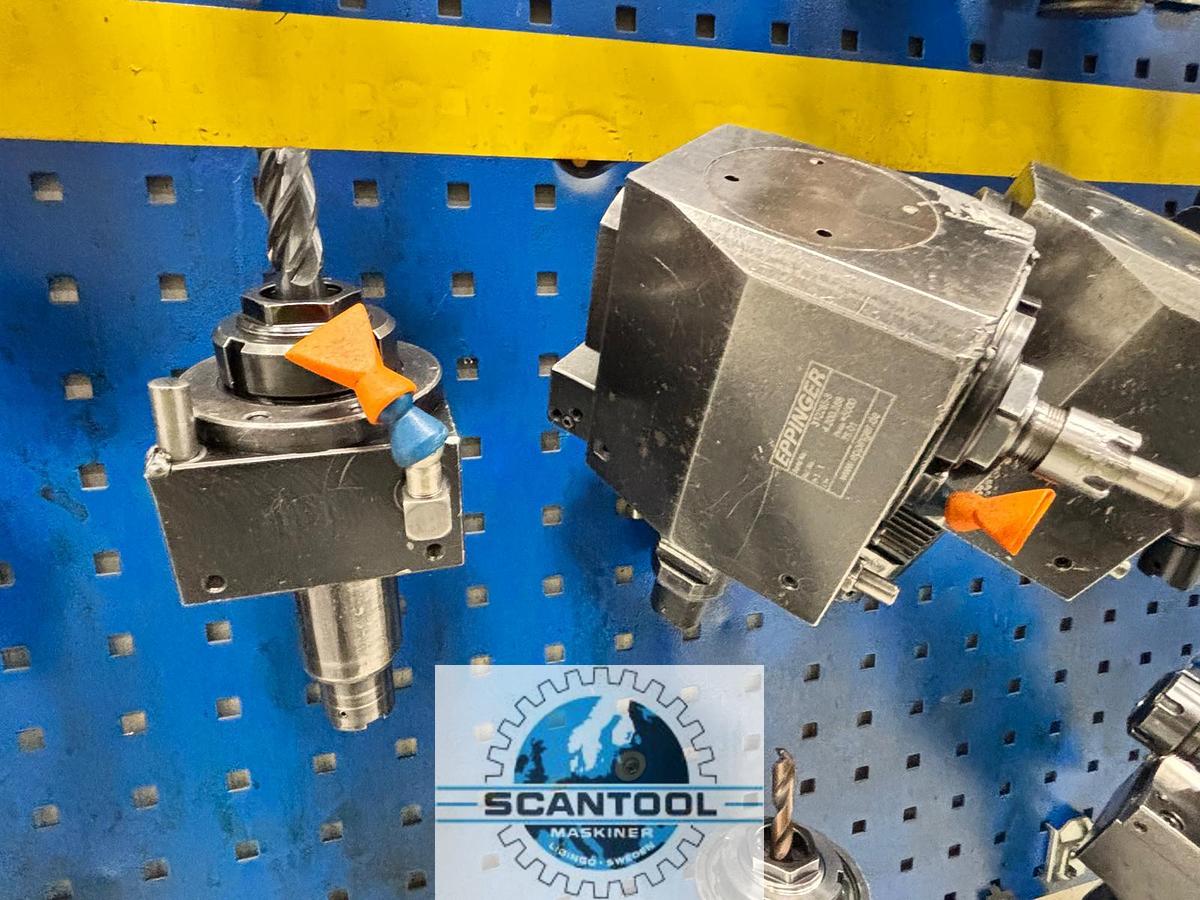

Automatic door opening and closing, Larger spindle bore (80 mm), effective through-bore (70 mm), Higher spindle power (22 kW/15 kW); built-in motor spindle with electronic gear shift (M41–M42), Oil mist separator, Standard features: cutting force monitoring, conversational programming ("One Touch"), Programmable tailstock (available on the 2002 model), Includes 3 live tool holders and 5 static holders per machine

Price: € 15.000 (subject to prior sale)

Delivery: free loaded your truck Borrby, Sweden

Terms: Net cash before delivery
