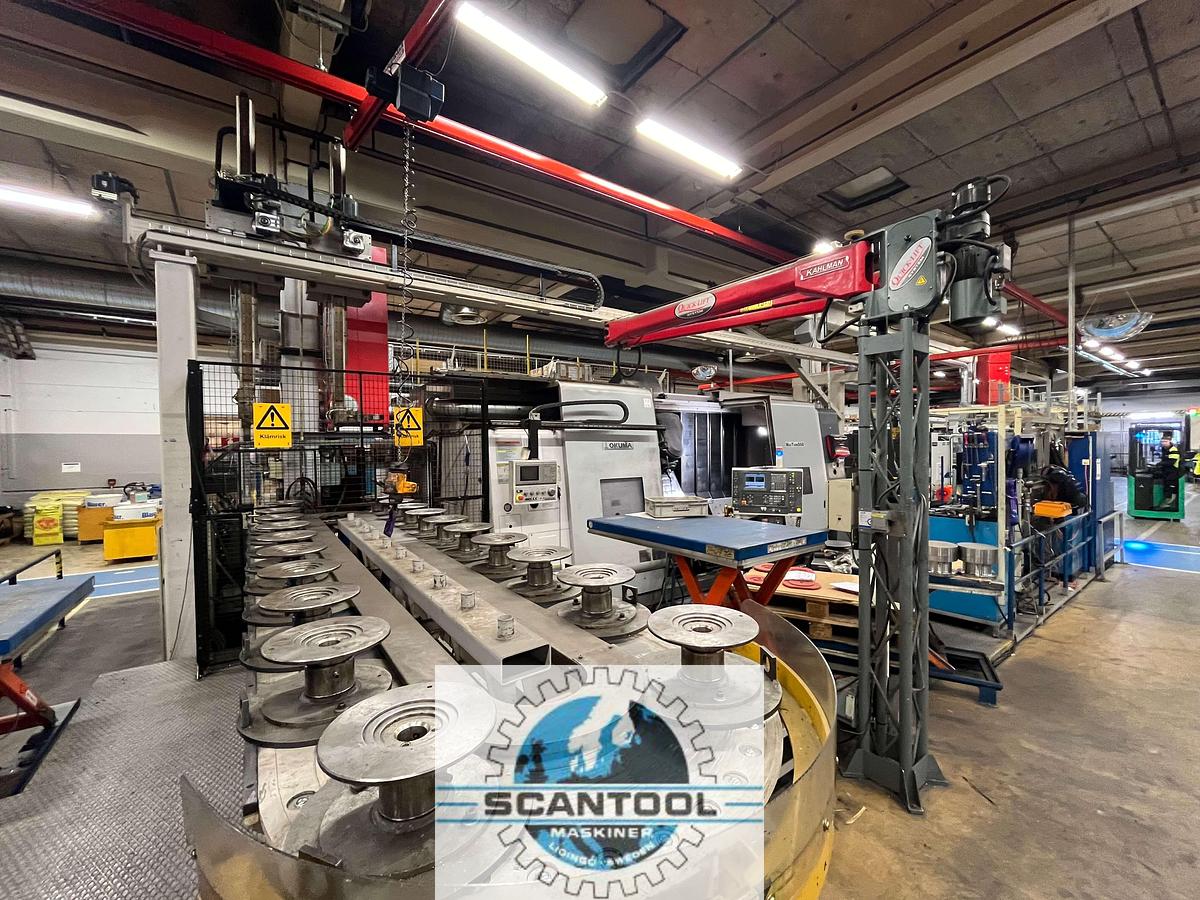

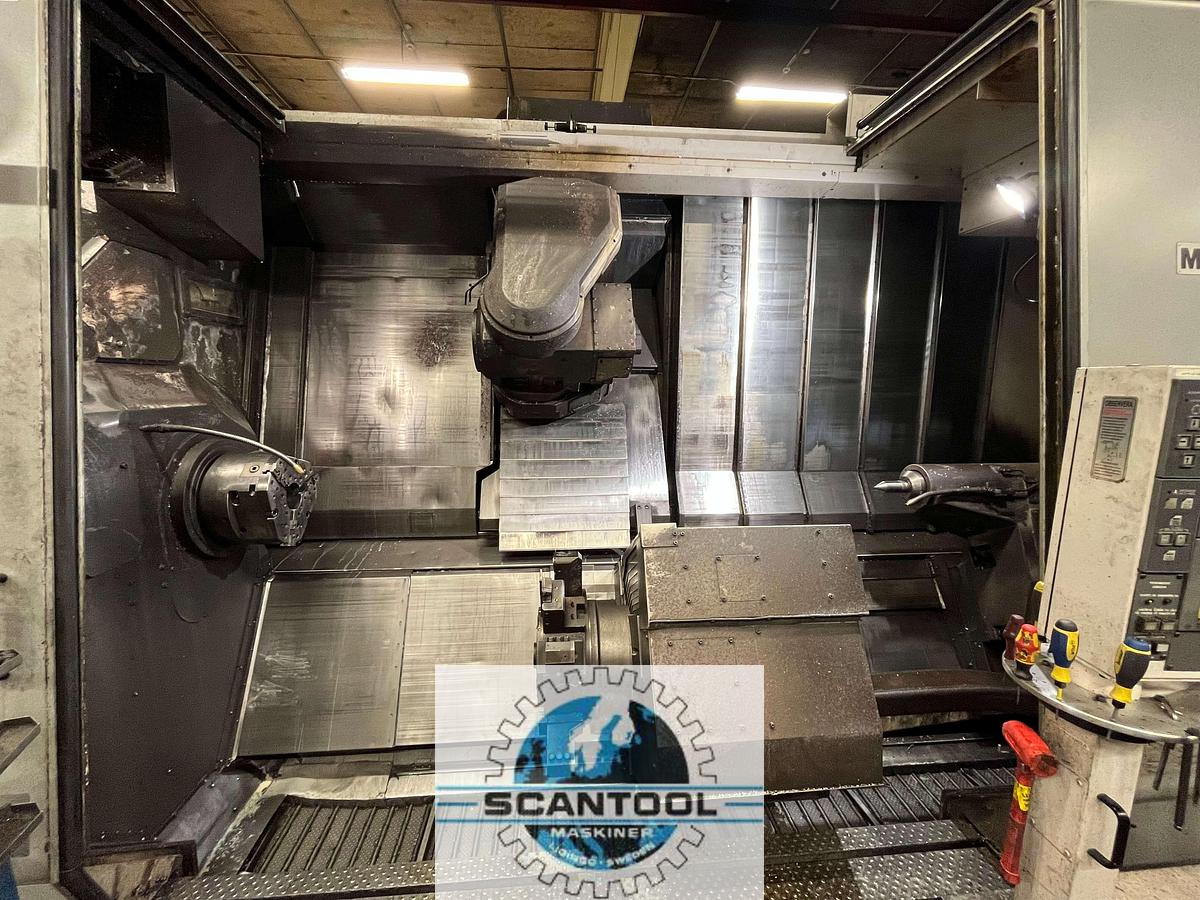

2003 Okuma Macturn 550

Okuma Macturn 550 x 2000

Y.o.M. 2003

CNC OSP-E100L

Machine specifications

Between centers 2.000 mm

Swing over carriage Dia 720 mm

Max machining dia Dia 720 mm

Max work length 2000 mm

Travels X-axis 660 mm

Res Z-axis                                          2100 mm

Travels Y-axis                                         250 mm (+110_-120)

Travels C-axis                                          360°(0,001° increment)

Travels B-axis                                          1° (360°)

Speed range 2 auto range

Spindle nose                                             JIS A2-11

Tapered bore                                            Dia 110 mm

Bearing dia Dia 150 mm

M-spindle speed range                             40-5000 rpm/min

Rapid traverse x 30m y 26 m z 30 m/min c200 rpm/min

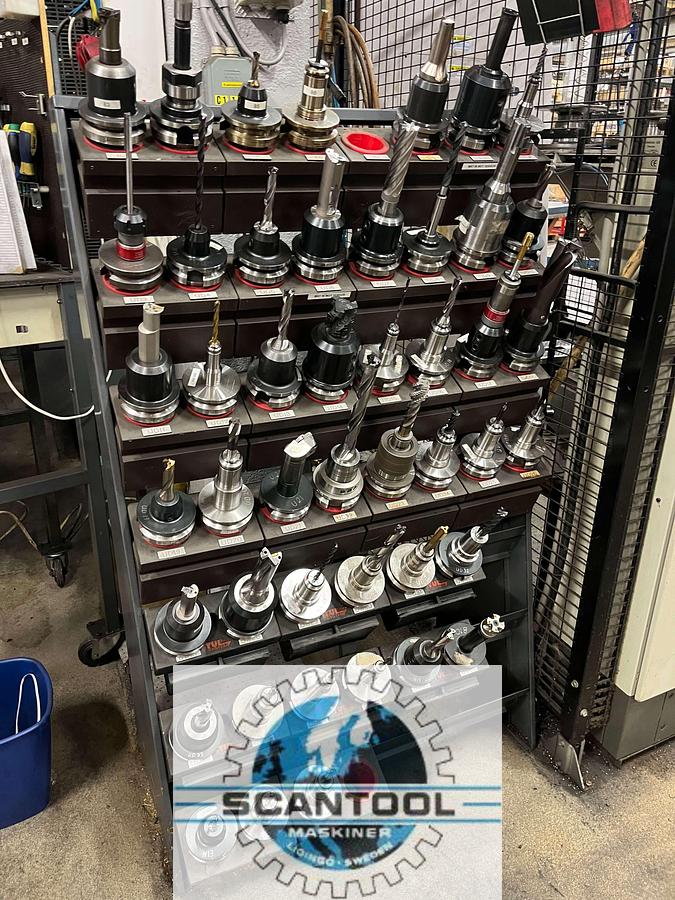

Tool shank MAS BT50

Magazine capacity 50-tools

Max tool dia                                             Dia 130/230 mm

Max tool length 350 mm

Max tool mass 20kg

Tool selection                                          Random

Tailstock quill Dia 120 mm

Tailstock quill tapered bore                     MT No:5

Tailstock quill travel                                250 mm

Spindle motor 37/30 kW

Spindle torque 2264 Nm

M-tool motor                                           22/15 kW

Chip conveyor
