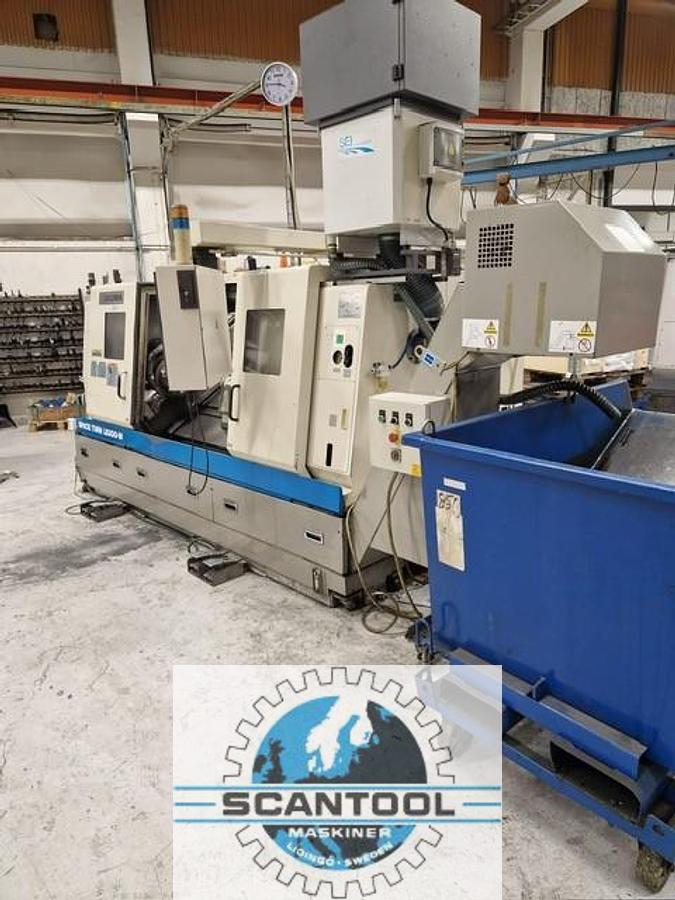

2002 Okuma LB 300 M

Make OKUMA

Type                                                                                                   LB 300 M

Year of manufacture

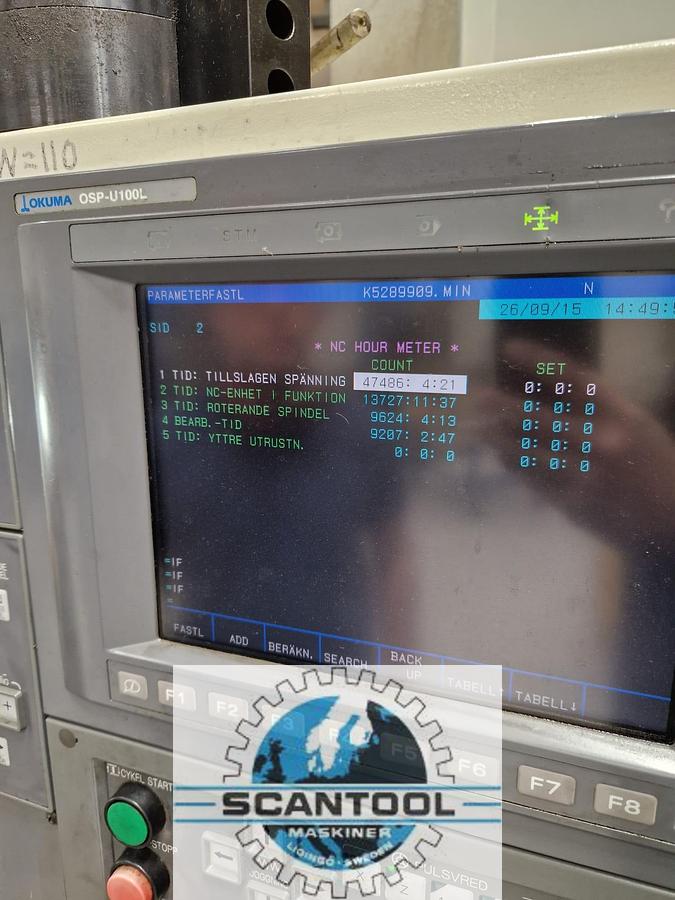

Control system                                                                            OSP U 100L

Swing over bed 530 mm

Swing över korsslid                                                              420 mm

Max. turning diameter 340 mm

Turning length                                                                               1000 mm

Travel X                                                                                             260 mm

Z 1020 mm

C 0.001°

Feed rate X/Z 0.001 – 1000 mm/min

Rapid traverse X/Z                                                                      20/25 m/min

Spindle speed (2 gear ranges) 38 – 3,800 rpm

Spindle power 22/15 kW

Spindle bore 80 mm

Bar capacity 65 mm

Spindle nose A2-8

Spindle bearing diameter                                                       120 mm

Spindle torque 410 Nm

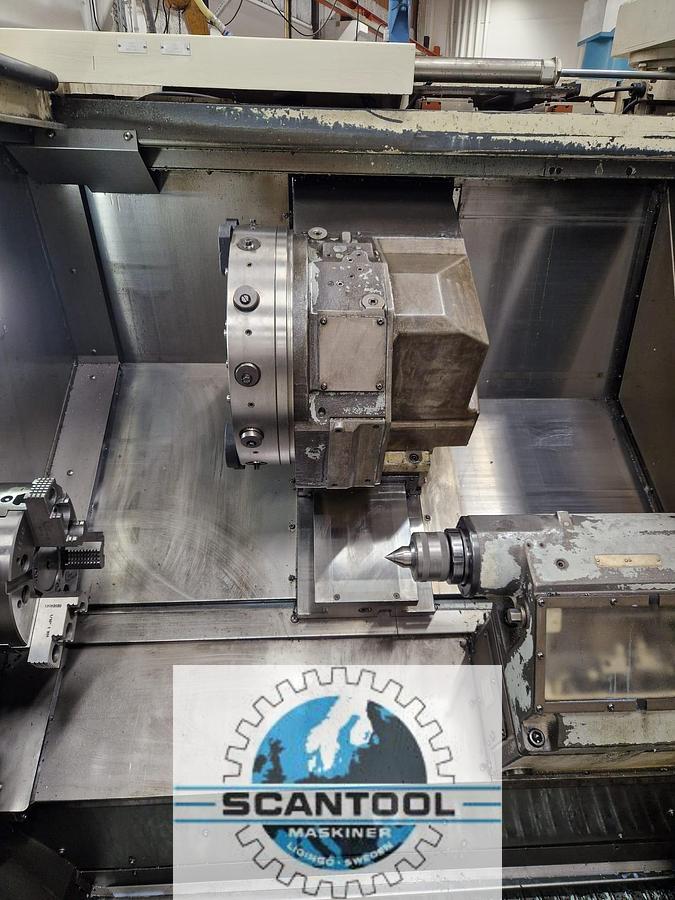

Number of tools in turret/driven 12/12

Tool interface                                                                                VDI 40

Driven tool speed 4,500 rpm

Driven tool power 5.5/3.3 kW

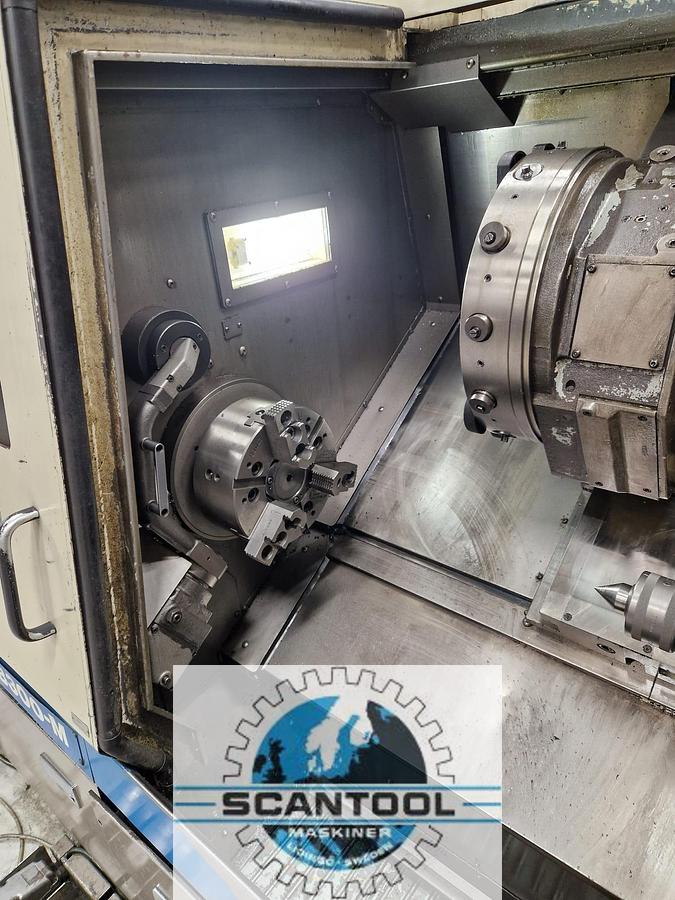

Chuck diameter                                                                          315 mm

Machine dimensions                                                                3310 x 1895 x 1925 mm

Machine weight 6,000 kg

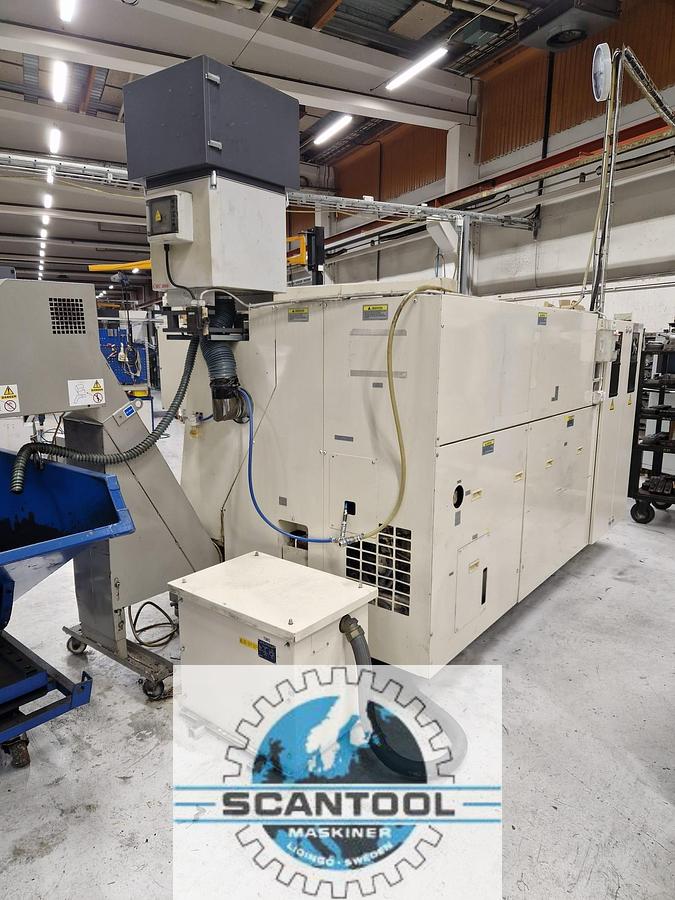

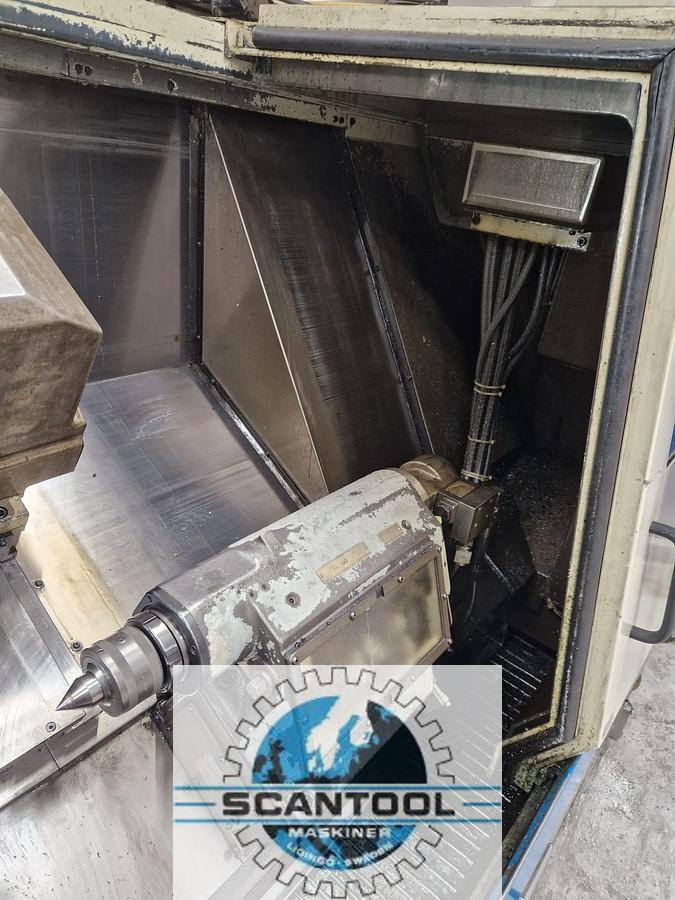

Equipment: Chip conveyor, Tailstock with hydraulic locking, Tool measuring equipment,

Price: € 15,000 (subject to prior sale)

Delivery: free loaded your truck Borrby, Sweden

Terms: Net cash before delivery
